79RC5000

Features:

Dual issue super-scalar execution core
250 MHz frequency
Dual issue floating-point ALU operations with other instruction classes
Traditional 5-stage pipeline, minimizes load and branch laten-cies
Single-cycle repeat rate for most floating point ALU operations
High level of performance for a variety of applications
High-performance 64-bit integer unit achieves 330 dhrystone MIPS (dhrystone 2.1)
Ultra high-performance floating-point accelerator, directly implementing single- and double-precision operations achieves 500mflops
Extremely large on-chip primary cache
On-chip secondary cache controller
MIPS-IV 64-bit ISA for improved computation
Compound floating-point operations for 3D graphics and floating-point DSP
Conditional move operations
Large on-chip TLB
Active power management, including use of WAIT operation
Large, efficient on-chip caches
32KB Instruction Cache, 32KB Data Cache
2-set associative in each cach
Virtually indexed and physically tagged to minimize cache flushes
Write-back and write-through selectable on a per page basis
Critical word first cache miss processing
Supports back-to-back loads and stores in any combination at full pipeline rate
High-performance memory system
Large primary caches integrated on-chip
Secondary cache control interface on-chip
High-frequency 64-bit bus interface runs up to 125MHz
Aggregate bandwidth of on-chip caches, system interface of 5.6GB/s
High-performance write protocols for graphics and data communications
Compatible with a variety of operating systems
Windows™ CE
Numerous MIPS-compatible real-time operating systems
Uses input system clock, with processor pipeline clock  multiplied by a factor of 2-8
Industrial and commercial temperature range

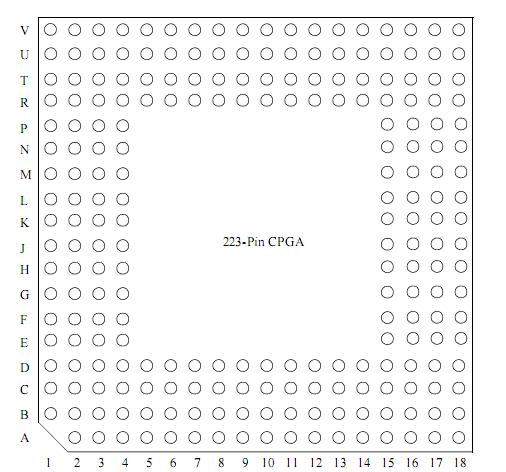

Pinout




Specifications

Symbol	Rating	Commerclal (3.3V±5%)	Industrlal (3.3V±5%)	Unit
VTERM	Terminal Voltage with respect to GND	-0.51 to +4.6	-0.51 to +4.6	V
TC	Operating Temperature (case)	0 to +85	-40 to +85	°C
TBIAS	Case Temperature Under Bias	-55 to +125	-55 to +125	°C
TSTG	Storage Temperature	-55 to +125	-55 to +125	°C
IIN	DC Input Current	202	203	mA
IOUT	DC Output Current	504	505	mA

Description

The RC5000 serves many performance critical embedded applica-tions, such as high-end internetworking systems, color printers, and graphics terminals.
The RC5000 is optimized for high-performance applications, with special emphasis on system bandwidth and floating point operations,through integration of high-perfor mance computational units and a high-performance memory hierarchy. For this class of application, the result is a relatively low-cost CPU capable of approximately 330 Dhrystone MIPS.
