Features: · High-performance embedded RISControllerTM microprocessor, based on IDT RISCore32300TM 32-bit CPU core
- Based on MIPS 32 RISC architecture with enhancements
- Scalar 5-stage pipeline minimizes branch and load delays
- 66 Million multiply accumulate (MAC) Mul-Add/second @ 133MHz
- 100 and 133 frequencies
· MIPS 32 (ISA) instruction set architecture
- MIPS IV compatible conditional move instructions
- MIPS IV superset PREF (prefetch) instruction
- Fast multiplier with atomic multiply-add, multiply-sub
- Count leading zeros/ones instructions
· Large, efficient on-chip caches
- Separate 8kB Instruction cache and 2kB Data cache
- 2-way set associative
- Write-back and write-through support on a per page basis
- Optional cache locking with “per line” resolution, to facilitate deterministic response
- Simultaneous instruction and data fetch in each clock cycle, sustained rate, achieves over 1 GB/sec bandwidth
· Flexible RC4000 compatible MMU with 32-page TLB on-chip
- Variable page size
- Variable number of locked entries
- No performance penalty for address translation
· Flexible bus interface allows simple, low-cost designs
- Bus interface runs at a fraction of pipeline rate
- Programmable port-width interface (8-,16-, 32-bit memory and I/O regions)
- Programmable bus turnaround times (BTA)
- Supports single data or burst transactions
· Improved real-time support
- Fast interrupt decode
· Low-power operation
- Active power management: powers down inactive units
- Typical power 700mW @ 133MHz
-Stand-by mode <300mW
· Enhanced JTAG interface, for low-cost in-circuit emulation (ICE)
· MIPS architecture ensures applications software compatibility throughout the RISController series of embedded processors
· Industrial temperature range support

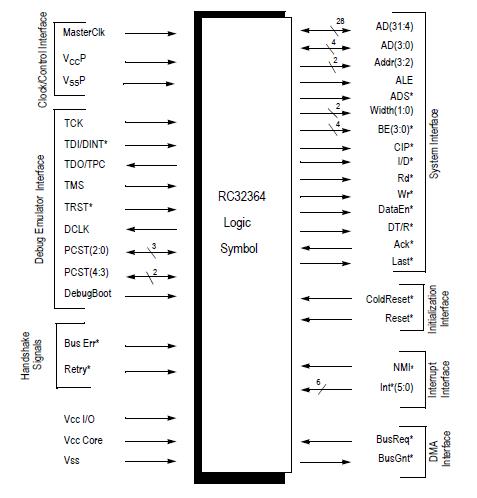

· 3.3V operation (core and I/O)Pinout
SpecificationsNote: Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
|
Symbol |
Rating |
RC32364
3.3V±5% |
RC32364
3.3V±5% |
Unit |
|
Commercial |
Industrial |
|
VTERM |
Terminal Voltage with respect to GND |
-0.51 to 4.0 |
-0.51 to 4.0 |
V |
|
TC |
Operating Temperature(case) |
0 to +85 |
-40 to +85 |
°C |
|
TBIAS |
Case Temperature Under Bias |
-55 to +125 |
-55 to +125 |
°C |
|
TSTG |
Storage Temperature |
-55 to +125 |
-55 to +125 |
°C |
|
IIN |
DC Input Current |
202 |
202 |
mA |
|
IOUT |
DC Output Current |
503 |
503 |
mA |
1. VIN minimum =-2.0V for pulse width less than 15ns. VIN should not exceed VCC +0.5 Volts.
2. When VIN < 0V or VIN > VCC
3. Not more than one output should be shorted at a time. Duration of the short should not exceed 30 seconds.DescriptionTargeted to a variety of performance-hungry, cost-sensitive embedded applications, the 79RC32364 is a new low-powered, low-cost member of the Integrated Device Technology, Inc. (IDT) RISController 79RC32364 of Embedded Microprocessors.
The 79RC32364 brings 64-bit performance levels to lower cost systems. High performance is achieved through the use of advanced techniques such as large on-chip two-way set-associative caches, a streamlined high-speed pipeline, high-bandwidth, and facilities such as early restart for data cache misses. Also, through IDT proprietary enhancements to the base MIPS architecture, the processor's performance, in particular applications, is further extended.
The 79RC32364 is the first member of a new processor family that uses IDT's proprietary RISCore32300 CPU core. The RISCore32300 core continues IDT's tradition of high-performance through high-speed pipelines, high-bandwidth caches, and architectural extensions that serve the needs of specific markets; yet the RC32364 provides these capabilities in a low-cost, high-speed 32-bit enhanced MIPS architecture core, enabling a new level of price performance.
Around the RISCore32300, the 79RC32364 integrates a fully RC5000 compatible memory management unit (MMU), substantial amounts of efficient cache memory, an enhanced debug capability, digital signal processing (DSP) extensions, and a low-cost system interface. The resulting device is well suited to the needs of mid-range communications equipment, xDSL equipment, and consumer devices.
Also, being upwardly software compatible with the RC3000 family, the 79RC32364 will serve in many of the same applications as well as support applications that require integer DSP functions.
79RC32364 Data Sheet
