7640

Type :
Material :
Mounting Method :
Size :
Color :


Features:

• Number of basic instructions.................................................... 71
• Minimum instruction execution time ..................................... 83ns
   (1-cycle instruction .................................................... = 12 MHz)
•Clock frequency maximum...................................... f(Xin) = 24 MHz
  ...................... ....................................................... f(XCin) = 5 MHz
  .................................................................................... = 12 MHz
• Memory size
   ROM ......................................................................... 32KB on chip
   RAM .......................................................................... 1 KB on chip
• Programmable I/O ports .........................................................  66
   ......................................................................... 8 bit X 7, 5 bit X 2
• Master Bus Interface (MBI) .......................................... 17 signals
   .................................................................................. 8 data lines
• Serial I/O ................................................. 8 bit clock synchronous
• USB Function Control .................................. 4 endpoints,1 control
• Interrupts ................................................. 4 external, 19 internal
   ..................................................................... 1 software,1 system
• DMAC ................................................2 channels, 16 address lines
   (Max. 6M byte/sec. transfer speed in burst mode)
• Timers ..............................................................8 bit X 3, 16 bit X 2
• Number of Full duplex UARTs available ........................................ 2
• Supply voltage ................................................... Vcc = 4.15~5.25V
• Operating temperature range .................................... -20 to 85°C
• Power-saving modes ...........................WIT (Idle), STP (Clocks halt)


Application

Cameras, games, musical instruments, modems scanners, and PC peripherals.

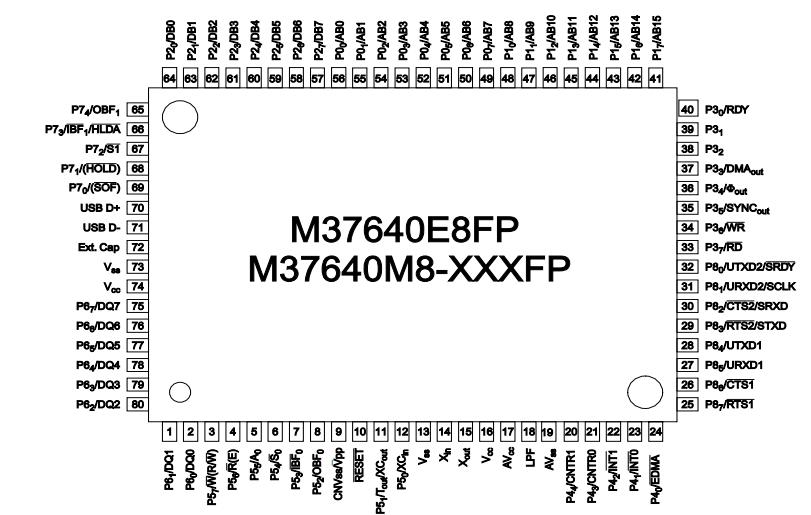

Pinout




Specifications

Symbol	Parameter	Conditions	Limits	Unit
VCC	Power supply		-0.3 to 6.5	V
AVCC	Analog power supply		-0.3 to VCC + 0.3	V
VI	Input voltage P0, P1, P2, P3, P4, P5, P6, P7, P8	Values are with respect to VSS. Output transistors are in off state.	-0.3 to VCC + 0.3	V
VI	Input voltage RESET, Xin, XCin		-0.3 to VCC + 0.3	V
VI	Input voltage CNVSS		-0.3 to 13	V
VI	Input voltage USB D+, D-		-0.5 to 3.8	V
VO	Output voltage P0, P1, P2, P3, P4, P5, P6, P7, P8, Xout, XCout,LPF		-0.3 to VCC + 0.3	V
VO	Output voltage USB D+, D-		-0.5 to 3.8	V
PD	Power dissipation (Note)	Ta = 25°C	750	mW
TOPR	Operating temperature		-20 to +85	°C
TSTG	Storage temperature		-40 to +125	°C

Description

The 7640 group, an enhanced family of CMOS 8-bit microcontrollers, offers high-speed operation, large internal-memory options, and a wide variety of stan-dard peripherals. The series is code compatible withthe 38000, 7200, 7400, and the 7500 series, and pro-vides many performance enhancements to the instruction set.

This 7640 is a single chip PC peripheral microcon-troller based on the Universal Serial Bus (USB) Version 1.1 specification. This device provides data exchange between a USB-equipped host computer and PC peripherals such as telephones, audio sys-tems and digital cameras. See Figure 1.1 for a pin layout diagram. See Figure 1.2 for the functional block diagram.


Parameters:

Technical/Catalog Information	7640
Vendor	Keystone Electronics
Category	Cables, Wires - Management
Color	White
Type	P-Clamp
Mounting Type	Screw
Opening Size	1.25" Dia x 0.50" W (31.8mm x 12.7mm)
Material	Nylon
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	7640 7640 7640K ND 7640KND 7640K
