75425-EP

Features:

 Controlled Baseline
One Assembly/Test Site, One Fabrication Site
Enhanced Diminishing Manufacturing Sources (DMS) Support
Enhanced Product-Change Notification
Qualification Pedigree†
2-A Low-Dropout Voltage Regulator
Available in 1.5-V, 1.8-V, 2.5-V, 3.3-V Fixed Output and Adjustable Versions
Open Drain Power-On Reset With 100-ms Delay (TPS752xx)
Open Drain Power-Good (PG) Status Output (TPS754xx)
Dropout Voltage Typically 210 mV at 2 A (TPS75233)
Ultralow 75-µA Typical Quiescent Current
Fast Transient Response
2% Tolerance Over Specified Conditions for Fixed-Output Versions
20-Pin TSSOP (PWP) PowerPAD^TM Package
Thermal Shutdown Protection

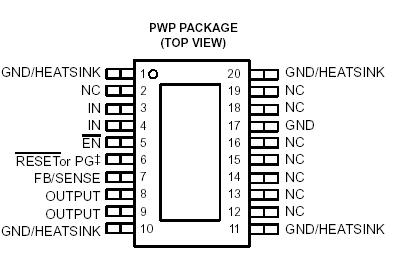

Pinout




Specifications

Input voltage range‡, V_I  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 5.5 V
Voltage range at EN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...0.3 V to 16.5 V
Maximum RESET voltage (TPS752xx)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.5 V
Maximum PG voltage (TPS754xx)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.5 V
Peak output current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  Internally limited
Output voltage, V_O (OUTPUT, FB)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5 V
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . ..See dissipation rating tables
Operating virtual junction temperature range, T_J . . . . . . . . . . . . . . . . . . . . . .       .40°C to 125°C
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
ESD rating, HBM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 kV


Description

   The 75425-EP are low dropout regulators with integrated power-on reset and power good (PG) functions respectively. These devices are capable of supplying 2 A of output current with a dropout of 210 mV (TPS75233, TPS75433). Quiescent current is 75 µA at full load and drops down to 1 µA when the device is disabled. TPS752xx and TPS754xx are designed to have fast transient response for larger load current changes.

   Because the PMOS device of the 75425-EP behaves as a low-value resistor, the dropout voltage is very low (typically 210 mV at an output current of 2 A for the TPS75x33) and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading (typically 75 µA over the full range of output current, 1 mA to 2 A). These two key specifications yield a significant improvement in operating life for battery-powered systems.

   The 75425-EP is enabled when the EN pin is connected to a low-level input voltage. This LDO family also features a sleep mode; applying a TTL high signal to EN (enable) shuts down the regulator, reducing the quiescent current to 1 µA at T_J = 25°C.

   The RESET (SVS, POR, or power on reset) output of the 75425-EP initiates a reset in microcomputer and microprocessor systems in the event of an undervoltage condition. An internal comparator in the TPS752xx monitors the output voltage of the regulator to detect an undervoltage condition on the regulated output voltage. When the output reaches 95% of its regulated voltage, RESET goes to a high-impedance state after a 100-ms delay. RESET of the 75425-EP goes to a logic-low state when the regulated output voltage is pulled below 95% (i.e., over load condition) of its regulated voltage.
