Features:

• Basic machine-language instructions .............................................. 69
• The minimum instruction execution time .................................. 0.34 µs
                    (at 6 MHz oscillation frequency for the shortest instruction)
• Memory size .........................................................................................
                        ROM ....................................................... 8K to 16K bytes
                        RAM ......................................................256 to 384 bytes
• Programmable I/O ports ............................................. 28 (36-pin type)
    ................................................................................... 24 (32-pin type)
• Interrupts ........................................................... 13 sources, 8 vectors
• Timers .................................................................................... 8-bit * 3
• Serial I/O1 .......................................... used only for Low Speed in USB
                                                                                               (USB/UART)
• Serial I/O2 .............................................................................. 8-bit * 1
                                                                                 (Clock-synchronized)
• A-D converter ......................................................... 10-bit * 8 channels
• Clock generating circuit ....................................................... Built-in type
   (connect to external ceramic resonator or quartz-crystal oscillator )
• Watchdog timer ..................................................................... 16-bit * 1
• Power source voltage
   At 6 MHz XIN oscillation frequency at ceramic resonator
      .......................................................................................... 4.1 to 5.5 V
• Power dissipation ...................................................... 30 mW (standard)
• Operating temperature range ......................................... 20 to 85 °C


Application

Input device for personal computer peripherals


Pinout

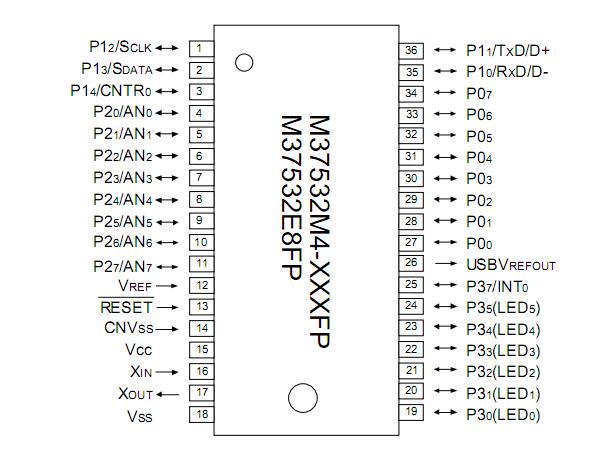

Connection Diagram


Specifications

Symbol

Parameter

Conditions

Ratings

Unit

VCC

Power source voltage


All voltages are

based on VSS.

Output transistors

are cut off.

0.3 to 7.0

V

VI

Input voltage                      P00P07, P10P14, P20P27, P30

P35, P37, VREF

0.3 to VCC + 0.3

V

VI

Input voltage                       RESET , XIN

0.3 to VCC + 0.3

V

VI

Input voltage                      CNVSS (Note 1)

0.3 to 13

V

VO

Output voltage                    P00P07, P10P14, P20P27, P30

                                            P35, P37, XOUT, USBVREFOUT

0.3 to VCC + 0.3

V

Pd

Power dissipation

Ta = 25°C

300 (Note 2)

mW

Topr

Operating temperature

20 to 85

°C

Tstg

Storage temperature

40 to 125

°C




Description

The 7532 Group is the 8-bit microcomputer based on the 740 family core technology.

The 7532 Group has a USB, 8-bit timers, and an A-D converter, and is useful for an input device for personal computer peripherals.
