74VCXR162245

The 74VCXR162245 is a low voltage CMOS 16 BIT BUS TRANSCEIVER (3-STATE) fabricated with sub-micron silicon gate and five-layer metal wiring C2MOS technology. It is ideal for low power and very high speed 1.8 to 3.6V applications; it can be interfaced to 3.6V signal environment for both inputs and outputs.

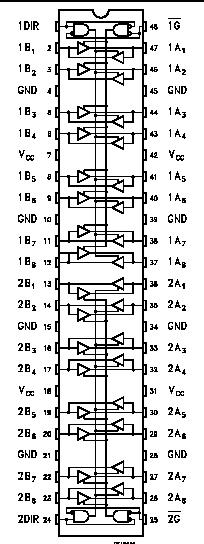

This IC of the 74VCXR162245 is intended for two-way asynchronous communication between data buses; the direction of data transmission is determined by DIR input.

The two enable inputs nG of the 74VCXR162245 can be used to disable the device so that the buses are effectively isolated. The device circuits is including 26W series resistance in the A and B port outputs. These resistors permit to reduce line noise in high speed applications.

All inputs and outputs of the 74VCXR162245 are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage. All floating bus terminals during High Z State must be held HIGH or LOW.
