74VCXH16374

Features:

`1.65V3.6V VCC supply operation
`3.6V tolerant control inputs and outputs
`Bushold on data inputs eliminates the need for external pull-up/pull-down resistors
`tPD
`3.0 ns max for 3.0V to 3.6V VCC
`3.9 ns max for 2.3V to 2.7V VCC
`7.8 ns max for 1.65V to 1.95V VCC
`Static Drive (IOH/IOL)
`±24 mA @ 3.0V VCC
`±18 mA @ 2.3V VCC
`±6 mA @ 1.65V VCC
`Uses patented noise/EMI reduction circuitry
`Latch-up performance exceeds 300 mA
`ESD performance:Human body model > 2000V Machine model > 200V

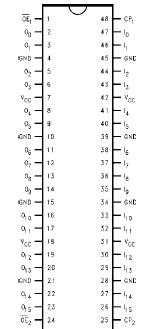

Pinout




Specifications

Supply Voltage (VCC)                                    -0.5V to +4.6V
DC Input Voltage (VI)
OEn, CPn                                                         -0.5V to 4.6V
I0 I15                                                -0.5V to VCC + 0.5V
Output Voltage (VO)
Outputs 3-STATED                                         -0.5V to +4.6V
Outputs Active (Note 2)                         -0.5V to VCC +0.5V
DC Input Diode Current (IIK)
VI < 0V                                                                     -50 mA
DC Output Diode Current (IOK)
VO < 0V                                                                    -50 mA
VO > VCC                                                                 +50 mA
DC Output Source/Sink Current
(IOH/IOL)                                                                 ±50 mA
DC VCC or GND Current per
Supply Pin (ICC or GND)                                          ±100 mA
Storage Temperature Range (TSTG)         -65°C to +150°C


Description

The 74VCXH16374 contains sixteen non-inverting D-type flipflops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and output enable (OE) are common to each byte and can be shorted together for full 16-bit operation.

The VCXH16374 data inputs include active bushold circuitry,eliminating the need for external pull-up resistors to hold unused or floating data inputs at a valid logic level.

The 74VCXH16374 is designed for low voltage (1.65V to3.6V) VCC applications with output compatibility up to 3.6V.

The 74VCXH16374 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
