74VCXH162374

Features:

1.65V3.6V VCC supply operation
3.6V tolerant control inputs and outputs
Bushold data inputs eliminates the need for external pull-up/pull-down resistors
26W series resistors in outputs
tPD (CLK to On)
3.4 ns max for 3.0V to 3.6V VCC
4.8 ns max for 2.3V to 2.7V VCC
9.6 ns max for 1.65V to 1.95V VCC
Static Drive (IOH/IOL)
±12 mA @ 3.0V VCC
±8 mA @ 2.3V VCC
±3 mA @ 1.65V VCC
Uses patented noise/EMI reduction circuitry
Latch-up performance exceeds 300 mA
ESD performance:
Human body model > 2000V
Machine model > 200V

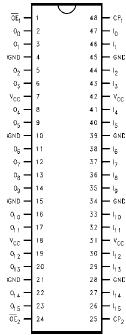

Pinout




Specifications

Supply Voltage (VCC) -0.5V to +4.6V
DC Input Voltage (VI)
OEn, CPn -0.5V to 4.6V
I0 I15 -0.5V to VCC to 0.5V
Output Voltage (VO)
Outputs 3-STATED -0.5V to +4.6V
Outputs Active (Note 3) -0.5V to VCC +0.5V
DC Input Diode Current (IIK)
VI < 0V -50 mA
DC Output Diode Current (IOK)
VO < 0V -50 mA
VO > VCC +50 mA
DC Output Source/Sink Current
(IOH/IOL) ±50 mA
DC VCC or GND Current per
Supply Pin (ICC or GND) ±100 mA
Storage Temperature Range (TSTG) -65°C to +150°C


Description

The 74VCXH162374 contains sixteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and output enable (OE) are common to each byte and can be shorted together for full 16-bit operation.
The VCXH162374 data inputs include active bushold circuitry,eliminating the need for external pull-up resistors to hold unused or floating data inputs at a valid logic level.The 74VCXH162374 is also designed with 26W series resistors in the outputs. This design reduces line noise in applications such as memory address drivers, clock drivers and bus transceivers/transmitters.
The 74VCXH162374 is designed for low voltage (1.65V to3.6V) VCC applications with output compatibility up to 3.6V.
The 74VCXH162374 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
