Features:

` Compatible with PC133 DIMM module specifications
` 1.65V3.6V VCC specifications provided
` 3.6V tolerant outputs
` 26Ω series resistors in outputs
` tPD (CP to On)
    3.2 ns max for 3.0V to 3.6V VCC
    4.1 ns max for 2.3V to 2.7V VCC
    7.4 ns max for 1.65V to 1.95V VCC
` Power-down high impedance outputs
` Static Drive (IOH/IOL)
    ±12 mA @ 3.0V VCC
    ±8 mA @ 2.3V VCC
    ±3 mA @ 1.65V VCC
` Latchup performance exceeds 300 mA
` ESD performance:
    Human body model > 2000V
    Machine model >200V


Pinout

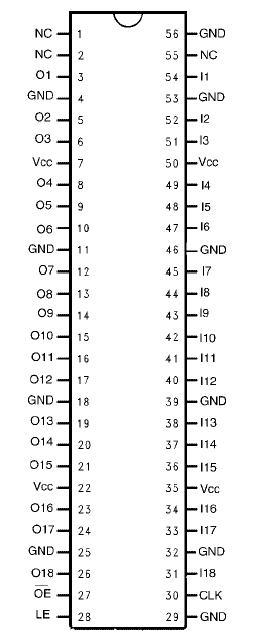

Connection Diagram


Specifications

Supply Voltage (VCC)............................................. −0.5V to +4.6V
DC Input Voltage (VI).................................... −0.5V to VCC + 0.5V
Output Voltage (VO)
Outputs 3-STATE................................................... −0.5V to +4.6V
Outputs Active (Note 5) ................................. −0.5 to VCC + 0.5V
DC Input Diode Current (IIK) VI < .......................... −0.5V −50 mA
VI > VCC + 0.5V (Note 6) ..................................................+50 mA
DC Output Diode Current (IOK)
VO < 0V .............................................................................−50 mA
VO > VCC ...........................................................................+50 mA
DC Output Source/Sink Current (IOH/IOL)......................... ±50 mA
DC VCC or Ground Current per
Supply Pin (ICC or Ground) .............................................±100 mA
Storage Temperature Range (TSTG) ................−65°C to +150°C


Description

The 74VCXF162835 low voltage 18-bit universal bus driver combines D-type latches and D-type flip-flops to allow data flow in transparent, latched and clocked modes. Data flow is controlled by output-enable (OE), latch-enable (LE), and clock (CLK) inputs. The device operates in Transparent Mode when LE is held HIGH.

The 74VCXF162835 operates in clocked mode when LE is LOW and CLK is toggled. Data transfers from the Inputs (In) to Outputs (On) on a Positive Edge Transition of the Clock. When OE is LOW, the output data is enabled. When OE is HIGH the output port is in a high impedance state. The VCXF162835 is designed with 26Ω series resistors in the outputs. This design reduces noise in applications such as memory address drivers, clock drivers, and bus transceivers/ transmitters.

The 74VCXF162835 is designed for low voltage (1.65V to 3.6V) VCC applications with I/O capability up to 3.6V. The 74VCXF162835 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
