Features: · 1.2V to 3.6V VCC supply operation· 3.6V tolerant inputs and outputs· tPD ±24 mA @ 3.0V VCC ±18 mA @ 2.3V VCC ±6 mA @ 1.65V VCC· Power-off high impedance inputs and outputs· Static Drive (IOH/IOL) ±24 mA @ 3.0V VCC· Uses patented Quiet Seriesä noise/EMI reduction circuitry·Function...
74VCX164245: Features: · 1.2V to 3.6V VCC supply operation· 3.6V tolerant inputs and outputs· tPD ±24 mA @ 3.0V VCC ±18 mA @ 2.3V VCC ±6 mA @ 1.65V VCC· Power-off high impedance inputs and outputs· Static Drive ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The 74VCX164245 is a dual supply, 16-bit translating transceiver that is designed for 2 way asynchronous communication between busses at different supply voltages by
providing true signal translation. The supply rails consist of VCCB, which is the higher potential rail operating at 2.3 to 3.6V and VCCA, which is the lower potential rail operating at 1.65 to 2.7V. (VCCA must be less than or equal to VCCB for proper device operation.) This dual supply design allows for translation from 1.8V to 2.5V busses to busses at a higher potential, up to 3.3V.

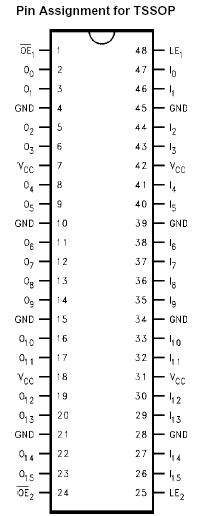

The Transmit/Receive (T/R) input of the 74VCX164245 determines the direction of data flow. Transmit (active-HIGH) enables data from A Ports to B Ports; Receive (active-LOW) enables data from B Ports to A Ports.The Output Enable (OE) input, when HIGH, disables both A and P Ports by placing them in a High-Z condition. The A Port interfaces with the lower voltage bus (1.8 - 2.5V); The B Port interfaces with the higher voltage bus (2.7 - 3.3V). Also the VCX164245 is designed so that the control pins (T/Rn, OEn) are supplied by VCCB.
The 74VCX164245 is suitable for mixed voltage applications such as notebook computers using a 1.8V CPU and 3.3V peripheral components. It is fabricated with an
Advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
