Features:

· 1.2V to 3.6V VCC supply operation
· 3.6V tolerant inputs and outputs
· tPD
  3.0 ns max for 3.0V to 3.6V VCC
  3.9 ns max for 2.3V to 2.7V VCC
  7.8 ns max for 1.65V to 1.95V VCC
· Power-off high impedance inputs and outputs
· Static Drive (IOH/IOL)
  ±24 mA @ 3.0V VCC
  ±18 mA @ 2.3V VCC
  ±6 mA @ 1.65V VCC
· Uses patented Quiet Seriesä noise/EMI reduction circuitry
· Latchup performance exceeds JEDEC 78 conditions
· ESD performance:
  Human body model > 2000V
  Machine model > 250V
· Leadless Pb-Free DQFN package


Pinout

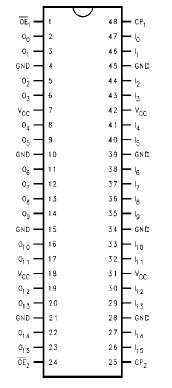

Connection Diagram


Specifications

Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . -0.5V to +4.6V
DC Input Voltage (VI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +4.6V
Output Voltage (VO)
HIGH or LOW State (Note 2) . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . -0.5V to VCC + 0.5V
VCC = 0V . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . -0.5V to +4.6V
DC Input Diode Current (IIK)
VI < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . -50 mA
DC Output Diode Current (IOK)
VO < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .-50 mA
VO > VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +50 mA
DC Output Source/Sink Current (IOL/IOL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
DC VCC or Ground Current per . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .±100 mA
Supply Pin (ICC or Ground)
Storage Temperature Range (Tstg) . . . . . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C


Description

The 74VCX16374 contains sixteen non-inverting D-type flipflops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and output enable (OE) are common to each byte and can be shorted together for full 16-bit operation.

The 74VCX16374 is designed for low voltage (1.65V to 3.6V) VCC applications with I/O compatibility up to 3.6V.

The 74VCX16374 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
