74VCX162245

Features: · 1.2V to 3.6V VCC supply operation· 3.6V tolerant inputs and outputs· tPD(B to A) 3.4 ns max for 3.0V to 3.6V VCC 4.3 ns max for 2.3V to 2.7V VCC 8.6 ns max for 1.65V to 1.95V VCC· Power-off high impedance inputs and outputs· Static Drive (IOH/IOL) ±12 mA @ 3.0V VCC ±8 mA @ 2.3V VCC ±3 ...

product image

74VCX162245 Picture
See larger image
SeekIC No. : 004251791 Detail

74VCX162245: Features: · 1.2V to 3.6V VCC supply operation· 3.6V tolerant inputs and outputs· tPD(B to A) 3.4 ns max for 3.0V to 3.6V VCC 4.3 ns max for 2.3V to 2.7V VCC 8.6 ns max for 1.65V to 1.95V VCC· Power-...

74VCX162245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74VCX162245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 1.2V to 3.6V VCC supply operation
· 3.6V tolerant inputs and outputs
· tPD(B to A)
  3.4 ns max for 3.0V to 3.6V VCC
  4.3 ns max for 2.3V to 2.7V VCC
  8.6 ns max for 1.65V to 1.95V VCC
· Power-off high impedance inputs and outputs
· Static Drive (IOH/IOL)
  ±12 mA @ 3.0V VCC
  ±8 mA @ 2.3V VCC
  ±3 mA @ 1.65V VCC
· Uses patented Quiet Seriesä noise/EMI reduction circuitry
· Latchup performance exceeds JEDEC 78 conditions
· ESD performance:
  Human body model > 2000V
  Machine model > 200V



Pinout

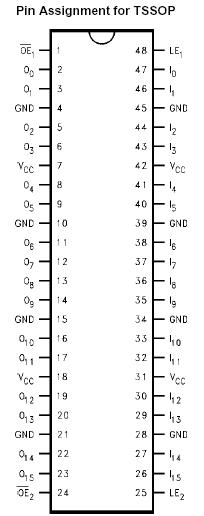

Connection Diagram


Specifications

Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . -0.5V to +4.6V
DC Input Voltage (VI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +4.6V
Output Voltage (VO)
Outputs 3-State
Outputs Active (Note 3) . . . . . . . . . . . . . . . . . . . . .. . . . . . .  . . .. . . . -0.5V to VCC + 0.5V
VCC = 0V . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . -0.5V to +4.6V
DC Input Diode Current (IIK)
VI < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . -50 mA
DC Output Diode Current (IOK)
VO < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .. . . . . . . . .-50 mA
VO > VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +50 mA
DC Output Source/Sink Current (IOL/IOL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
DC VCC or Ground Current per . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .±100 mA
Supply Pin (ICC or Ground)
Storage Temperature Range (Tstg) . . . . . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C


Description

The 74VCX162245 contains sixteen non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. Each byte has separate 3-STATE control inputs which can be shorted together for full 16-bit operation. The T/R inputs determine the direction of data flow through the device.

TheOE inputs disable both the A and B ports by placing them in a high impedance state.

The 74VCX162245 is designed for low voltage (1.65V to 3.6V) VCC applications with I/O compatibility up to 3.6V.

The 74VCX162245 is also designed with 26W series resistance in the A Port outputs. This design reduces line noise in applications such as memory address drivers, clock drivers, and bus transceivers/transmitters.

The 74VCX162245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
