Description

Features:

· 1.2V to 3.6V V_CC supply operation
· 3.6V tolerant inputs and outputs
· t_PD
3.3 ns max for 3.0V to 3.6V V_CC
· Power-off high impedance inputs and outputs
· Static Drive (IOH/IOL)
±24 mA @ 3.0V V_CC
· Uses patented Quiet Seriesä noise/EMI reduction circuitry
· Latchup performance exceeds JEDEC 78 conditions
· ESD performance:
Human body model > 2000V
Machine model > 200V
·Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA)

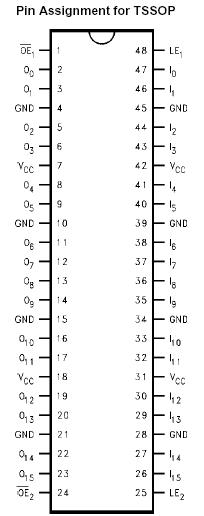

Pinout

Connection Diagram

Specifications

Supply Voltage (V_CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . -0.5V to +4.6V
DC Input Voltage (V_I) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +4.6V
Output Voltage (V_O)
Outputs 3-STATE. . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . -0.5V to +4.6V
Outputs Active (Note 5) . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . -0.5V to VCC + 0.5V
V_CC = 0V . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . -0.5V to +4.6V
DC Input Diode Current (IIK)
VI < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . -50 mA
DC Output Diode Current (IOK)
VO < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-50 mA
VO > V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +50 mA
DC Output Source/Sink Current (IOL/IOL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
DC V_CC or Ground Current per . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .±100 mA
Supply Pin (I_CC or Ground)
Storage Temperature Range (Tstg) . . . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C

Description

The 74VCX162244 contains sixteen non-inverting buffers with 3-STATE outputs to be employed as a memory and address driver, clock driver, or bus oriented transmitter/
receiver. The device is nibble (4-bit) controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.

The 74VCX162244 is designed for low voltage (1.2V to 3.6V) VCC applications with I/O capability up to 3.6V. The 74VCX162244 is also designed with 26: series resistors in the outputs. This design reduces line noise in applications such as memory address drivers, clock drivers, and bus transceivers/transmitters.

The 74VCX162244 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
