PinoutSpecifications Symbol Parameter Value Units VCC Supply Voltage -0.5 to +7.0 V VIDC Input Voltage -0.5 to VCC + 0.5 V VIC DC Control Input Voltage -0.5 to +7.0 V VO DC Output Voltage -0.5 to VCC + 0.5 V IIK ...
74V2T66: PinoutSpecifications Symbol Parameter Value Units VCC Supply Voltage -0.5 to +7.0 V VIDC Input Voltage -0.5 to VCC + 0.5 V VIC DC Control Inp...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Parameter |
Value |
Units |
VCC |
Supply Voltage |
-0.5 to +7.0 |
V |
VIDC |
Input Voltage |
-0.5 to VCC + 0.5 |
V |
VIC |
DC Control Input Voltage |
-0.5 to +7.0 |
V |
VO |
DC Output Voltage |
-0.5 to VCC + 0.5 |
V |
IIK |
DC Input Diode Current |
± 20 |
mA |
IIK |
DC Control Input Diode Current |
- 20 |
mA |
IOK |
DC Output Diode Current |
± 20 |
mA |
IO |
DC Output Current |
± 50 |
mA |
ICC or IGND |
DC VCC or Ground Current |
± 50 |
mA |
Tstg |
Storage Temperature |
-65 to +150 |
°C |
TL |
Lead Temperature (10 sec) |
300 |
°C |

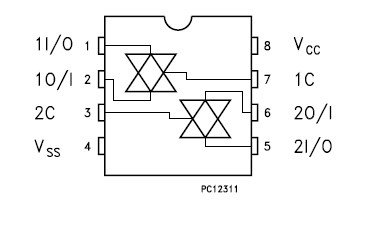

The 74V2T66 is an advanced high-speed CMOS DUAL BILATERAL SWITCH fabricated in silicon gate C2MOS technology. It achieves high speed propagation delay and VERY LOW ON resistances while maintaining true CMOS low power consumption. This bilateral switch handles rail to rail analog and digital signals that may vary across the full power supply range (from GND to VCC)
The C input of the 74V2T66 is provided to control the switch and it's compatible with standard CMOS output; the switch is ON (port I/O is connected to Port O/I) when the C input is held high and OFF (high impedance state exists between the two ports) when C is held low. It can be used in many application as Battery Powered System, Test Equipment. It's available in the commercial and extended temperature range in SOT23-8L package. All inputs and output of the 74V2T66 are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage.
