PinoutSpecifications Symbol Parameter Value Units VCC Supply Voltage -0.5 to +7.0 V VIC DC Control Input Voltage -0.5 to +7.0 V VO DC Output Voltage -0.5 to VCC + 0.5 V IIK DC Input Diode Current -20 mA IOK DC ...
74V2T32: PinoutSpecifications Symbol Parameter Value Units VCC Supply Voltage -0.5 to +7.0 V VIC DC Control Input Voltage -0.5 to +7.0 V VO DC Output...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

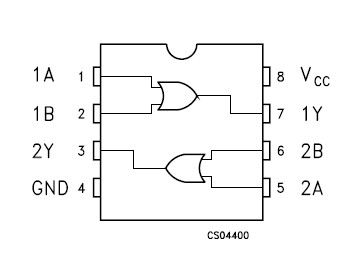

Symbol |
Parameter |
Value |
Units |
VCC |
Supply Voltage |
-0.5 to +7.0 |
V |
VIC |
DC Control Input Voltage |
-0.5 to +7.0 |
V |
VO |
DC Output Voltage |
-0.5 to VCC + 0.5 |
V |
IIK |
DC Input Diode Current |
- 20 |
mA |
IOK |
DC Output Diode Current |
± 20 |
mA |
IO |
DC Output Current |
± 25 |
mA |
ICC or IGND |
DC VCC or Ground Current |
± 50 |
mA |
Tstg |
Storage Temperature |
-65 to +150 |
°C |
TL |
Lead Temperature (10 sec) |
300 |
°C |
The 74V2T32 is an advanced high-speed CMOS DUAL 2-INPUT OR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.
The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output.
Power down protection is provided on all inputs and outputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V systems and it is ideal for portable applications like personal digital assistant and all battery-powered equipment.
All inputs and outputs of the 74V2T32 are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage.
