Product Details

Description



Features:

` HIGH SPEED: tPD = 3.7 ns (TYP.) at VCC = 5V
` LOW POWER DISSIPATION: ICC = 1 A (MAX.) at TA = 25
` TYPICAL HYSTERESIS: 0.8V at VCC = 4.5V
` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN)
` BALANCED PROPAGATION DELAYS: tPLH  tPHL
` OPERATING VOLTAGE RANGE: VCC(OPR) = 4.5V to 5.5V
` IMPROVED LATCH-UP IMMUNITY


Pinout

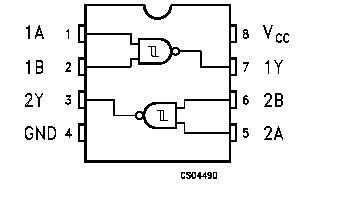

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7.0
V
VI
 DC Input Voltage
-0.5 to +7.0
V
VO
 DC Output Voltage (see note 1)
-0.5 to +7.0
V
VO
 DC Output Voltage (see note 2)
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
-20
mA
IOK
 DC Output Diode Current
±20
mA
IO
 DC Output Current
±25
mA
ICC or IGND
 DC VCC or Ground Current
±50
mA
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
300
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional
operation under these conditions is not implied

1) VCC = 0V
2) High or Low State


Description

The 74V2T132 is an advanced high-speed CMOS SINGLE 2-INPUT NAND GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

Pin configuration and function are the same as those of the 74V2T00 but the 74V2T132 has hysteresis.

The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output.

Power down protection of the 74V2T132 is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V.
