74V2T03

PinoutSpecifications Symbol Parameter Value Units VCC Supply Voltage -0.5 to +7.0 V VI DC Input Voltage -0.5 to +7.0 V VO DC Output Voltage -0.5 to VCC + 0.5 V IIK DC Input Diode Current -20 mA IOK DC Output Dio...

product image

74V2T03 Picture
See larger image
SeekIC No. : 004251771 Detail

74V2T03: PinoutSpecifications Symbol Parameter Value Units VCC Supply Voltage -0.5 to +7.0 V VI DC Input Voltage -0.5 to +7.0 V VO DC Output Voltage ...

74V2T03 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74V2T03
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

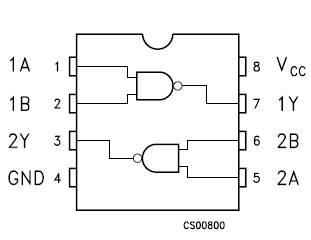

Connection Diagram


Specifications

Symbol

Parameter

Value

Units

VCC

Supply Voltage

-0.5 to +7.0

V

VI

DC Input Voltage

-0.5 to +7.0

V

VO

DC Output Voltage

-0.5 to VCC + 0.5

V

IIK

DC Input Diode Current

- 20

mA

IOK

DC Output Diode Current

± 20

mA

IO

DC Output Current

± 25

mA

ICC or IGND

DC VCC or Ground Current

± 50

mA

Tstg

Storage Temperature

-65 to +150

°C

TL

Lead Temperature (10 sec)

260

°C




Description

The 74V2T03 is an advanced high-speed CMOS DUAL 2-INPUT OPEN DRAIN NAND GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output.

The 74V2T03 can, with an external pull-up resistor, be used in wired AND configuration. This device can also be used as a led driver in any other application requiring current sink.

Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. The 74V2T03 can be
used to interface 5V to 3V.
