Symbol |
Parameter |
Value |
Units |
VCC |
Supply Voltage |
-0.5 to +7.0 |
V |
VIDC |
Input Voltage |
-0.5 to VCC + 0.5 |
V |
VIC |
DC Control Input Voltage |
-0.5 to +7.0 |
V |
VO |
DC Output Voltage |
-0.5 to VCC + 0.5 |
V |
IIK |
DC Input Diode Current |
± 20 |
mA |
IIK |
DC Control Input Diode Current |
- 20 |
mA |
IOK |
DC Output Diode Current |
± 20 |
mA |
IO |
DC Output Current |
± 50 |
mA |
ICC or IGND |
DC VCC or Ground Current |
± 50 |
mA |
Tstg |
Storage Temperature |
-65 to +150 |
°C |
TL |
Lead Temperature (10 sec) |
300 |
°C |

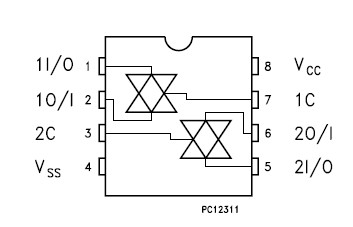

The 74V2G384 is an advanced high-speed CMOS DUAL HIGH SPEED BUS SWITCH fabricated in silicon gate C2MOS technology. It's designed to operate from 3V to 5.5V, making this device ideal for portable applications. It's offers 7W Resistance typical value at VCC=4.5V. Additional key feature are fast switching speed (tON=3.8ns, tOFF=3.3ns Typical) and Low Power Consumption.
The OE input of the 74V2G384 is provided to control the switch; the switch is ON when the OE input is held low and OFF when OE is held high.
It's available in the commercial and extended temperature range in SOT23-8L package.
