74V2G132

Features: ` HIGH SPEED: tPD = 3.0ns (TYP.) at VCC = 5V` LOW POWER DISSIPATION: ICC = 1A(MAX.) at TA = 25` TYPICAL HYSTERESIS: VH = 800mV at VCC = 4.5V VH = 500mV at VCC = 3.0V` POWER DOWN PROTECTION ON INPUTS AND OUTPUTS` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN) at VCC = 4.5V IIOH| = ...

product image

74V2G132 Picture
See larger image
SeekIC No. : 004251759 Detail

74V2G132: Features: ` HIGH SPEED: tPD = 3.0ns (TYP.) at VCC = 5V` LOW POWER DISSIPATION: ICC = 1A(MAX.) at TA = 25` TYPICAL HYSTERESIS: VH = 800mV at VCC = 4.5V VH = 500mV at VCC = 3.0V` POWER DOWN PROTECTION...

74V2G132 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74V2G132
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` HIGH SPEED: tPD = 3.0ns (TYP.) at VCC = 5V
` LOW POWER DISSIPATION: ICC = 1A(MAX.) at TA = 25
` TYPICAL HYSTERESIS:
    VH = 800mV at VCC = 4.5V
    VH = 500mV at VCC = 3.0V
` POWER DOWN PROTECTION ON INPUTS AND OUTPUTS
` SYMMETRICAL OUTPUT IMPEDANCE:
    |IOH| = IOL = 8mA (MIN) at VCC = 4.5V
    IIOH| = IOL = 4mA (MIN) at VCC = 3.0V
` BALANCED PROPAGATION DELAYS: tPLH  tPHL
` OPERATING VOLTAGE RANGE: VCC(OPR) = 2V to 5.5V
` IMPROVED LATCH-UP IMMUNITY


Pinout

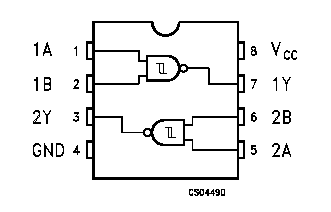

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7.0
V
VI
 DC Input Voltage
-0.5 to +7.0
V
VO
 DC Output Voltage (see note 1)
-0.5 to +7.0
V
VO
 DC Output Voltage (see note 2)
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
-20
mA
IOK
 DC Output Diode Current
-20
mA
IO
 DC Output Current
±25
mA
ICC or IGND
 DC VCC or Ground Current
±50
mA
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
260
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional
operation under these conditions is not implied




Description

The 74V2G132 is an advanced high-speed CMOS SINGLE 2-INPUT NAND GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

Pin configuration and function are the same as those of the 74V2G00 but the 74V2G132 has hysteresis.

The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output.

Power down protection of the 74V2G132 is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V.
