Product Details

Description



Pinout

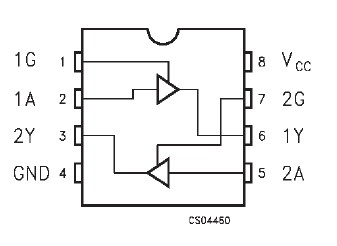

Connection Diagram


Specifications

Symbol

Parameter

Value

Units

VCC

Supply Voltage

-0.5 to +7.0

V

VI

DC Input Voltage

-0.5 to +7.0

V

VIC

DC Output Voltage (see note 1)

-0.5 to +7.0

V

VO

DC Output Voltage (see note 2)

-0.5 to VCC + 0.5

V

IIK

DC Input Diode Current

- 20

mA

IOK

DC Output Diode Current

- 20

mA

IO

DC Output Current

± 25

mA

ICC or IGND

DC VCC or Ground Current

± 50

mA

Tstg

Storage Temperature

-65 to +150

°C

TL

Lead Temperature (10 sec)

260

°C




Description

The 74V2G126 is an advanced high-speed CMOS DUAL BUS BUFFER fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS tecnology.

3-STATE control input nG has to be set LOW to place the output into the high impedance state. Power down protection is provided on all inputs and outputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V systems and it is ideal for portable applications like personal digital assistant, camcorder and all battery-powered equipment.

All inputs and outputs of the 74V2G126 are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage.
