Features:

HIGHSPEED: tPD = 3.5 ns (TYP.) atV_CC =5V
LOWPOWER DISSIPATION:I_CC =1 µA (MAX.) at T_A =25 oC
HIGHNOISEIMMUNITY:V_NIH =V_NIL =10%V_CC (MIN.)
POWERDOWN PROTECTIONON INPUT
SYMMETRICALOUTPUT IMPEDANCE:|IOH|=I_OL = 8 mA (MIN)
BALANCEDPROPAGATIONDELAYS:tPLH ≅ tPHL
OPERATINGVOLTAGERANGE:V_CC (OPR)= 2V to 5.5V
IMPROVEDLATCH-UP IMMUNITY

Pinout

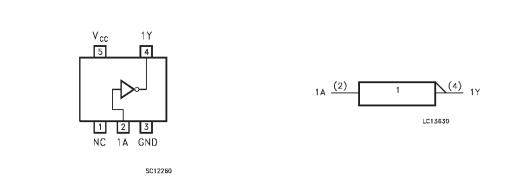

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	-0.5 to +7.0	V
V_I	DC Input Voltage	-0.5 to +7.0	V
V_O	DC Output Voltage	-0.5 to V_CC + 0.5	V
I_IK	DC Input Diode Current	- 20	mA
I_OK	DC Output Diode Current	± 20	mA
I_O	DC Output Current	± 25	mA
I_CC orI_GND	DC V_CC or Ground Current	± 50	mA
T_stg	Storage Temperature	-65 to +150
T_L	Lead Temperature (10 sec)	260

Description

The 74V1GU04 is an advanced high-speedCMOS SINGLE INVERTER fabricated withsub-micron silicon gate and double-layer metalwiring C2MOS technology.As the internal circuit is composed of a singlestage inverter, it can be used in analogapplication such a crystal oscillator.Power down protection is provided on input and0 to 7V can be accepted on input with no regardo the supply voltage. This 74V1GU04 can be used tonterface 5V to 3V.
