74LCXZ2245

Features:

`5V tolerant inputs and outputs
`2.7V3.6V VCC specifications provided
`7.0 ns tPD max (V<sub>CC</sub> = 3.3V), 10 µA I<sub>CC</sub> max
`Power down high impedance inputs and outputs
`Supports live insertion/withdrawal (Note 1)
`±12 mA output drive on the B Port (V_CC = 3.0V)
`Implements patented noise/EMI reduction circuitry
`Latch-up performance exceeds 500 mA
`Equivalent 26Ω series resistor on all B Port outputs
`ESD performance:Human body model > 2000V Machine model > 200V

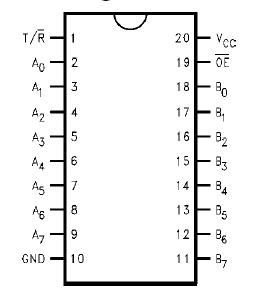

Pinout




Specifications

Symbol	Parameter	Value	Conditions	Units
VCC	Supply Voltage	−0.5 to +7.0		V
VI	DC Input Voltage	−0.5 to +7.0		V
VO	DC Output Voltage	−0.5 to +7.0 −0.5 to VCC + 0.5	Output in 3-STATE Output in HIGH or LOW State (Note 4)	V
IIK	DC Input Diode Current	−50	VI < GND	mA
IOK	DC Output Diode Current	−50 +50	VO < GND VO > VCC	mA
IO	DC Output Source/Sink Current	±50		mA
ICC	DC Supply Current per Supply Pin	±100		mA
IGND	DC Ground Current per Ground Pin	±100		mA
TSTG	Storage Temperature	−65 to +150		°C

Description

The 74LCXZ2245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is designed for low voltage (2.7V and 3.3V) V_CC applications with capability of interfacing to a 5V signal environment. The T/R input determines the direction of data flow through the device. The OE input disables both the A and B ports by placing them in a high impedance state. The 26Ω series resistor of the 74LCXZ2245 in the B Port output helps reduce output overshoot and undershoot.
The 74LCXZ2245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
When VCC is between 0 and 1.5V, the LCXZ2245 is on the high impedance state during power up or power down. This places the outputs in the high impedance (Z) state preventing intermittent low impedance loading or glitching in bus oriented applications.
