74LCXR162245

Features: 5V tolerant inputs and outputs2.3V3.6V VCC specifications providedA and B side outputs have equivalent 26: series resistors5.3 ns tPD max (VCC 3.3V), 20 PA ICC maxPower down high impedance inputs and outputsSupports live insertion/withdrawal (Note 1)Flow through pinoutImplements patented...

product image

74LCXR162245 Picture
See larger image
SeekIC No. : 004251049 Detail

74LCXR162245: Features: 5V tolerant inputs and outputs2.3V3.6V VCC specifications providedA and B side outputs have equivalent 26: series resistors5.3 ns tPD max (VCC 3.3V), 20 PA ICC maxPower down high impedance...

74LCXR162245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LCXR162245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5V tolerant inputs and outputs
2.3V3.6V VCC specifications provided
A and B side outputs have equivalent 26: series resistors
5.3 ns tPD max (VCC   3.3V), 20 PA ICC max
Power down high impedance inputs and outputs
Supports live insertion/withdrawal (Note 1)
Flow through pinout
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance:
    Human body model ! 2000V
    Machine model ! 200V


Pinout

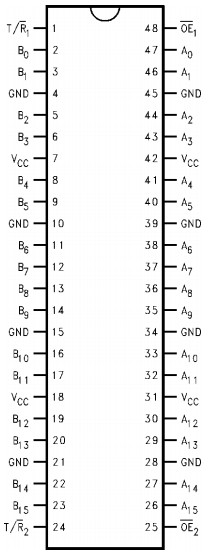

Connection Diagram


Specifications

Symbol Parameter Value Conditions Units
VCC Supply Voltage −0.5 to +7.0   V
VI DC Input Voltage −0.5 to +7.0   V
VO DC Output Voltage −0.5 to +7.0
−0.5 to VCC + 0.5 		Output in 3-STATE
Output in HIGH or LOW State (Note 4)		 mA
IIK DC Input Diode Current −50 VI < GND mA
IOK DC Output Diode Current −50
+50 		VO < GND
VO > VCC		 mA
IO DC Output Source/Sink Current ±50   mA
ICC DC Supply Current per Supply Pin ±100   mA
IGND DC Ground Current per Ground Pin ±100   mA
TSTG Storage Temperature −65 to +150   °C



Description

The 74LCXR162245 contains sixteen non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The device is byte controlled. Each byte has separate control inputs which could be shorted together for full 16-bit operation. The T/R inputs of the 74LCXR162245 determine the direction of data flow through the device. The OE inputs disable both the A and B ports by
placing them in a high impedance state.

In addition, all A and B outputs include equivalent 26: (nominal) series resistors to reduce overshoot and undershoot and are designed to sink/source up to 12 mA at VCC   3.0V.

The 74LCXR162245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
