74LCXH162374

Features:

`5V tolerant control inputs and outputs
`2.3V3.6V VCC specifications provided
`7.0 ns tPD max (VCC = 3.3V), 20 µA ICC max
`Power down high impedance inputs and outputs
`±12 mA output drive (VCC = 3.0V)
`Implements patented noise/EMI reduction circuitry
`Latch-up performance exceeds 500 mA
`ESD performance:
`Human body model > 2000V
`Machine model > 200V
`Equivalent 26Ω series resistors on output
`Bushold on inputs eliminates the need for external
`pull-up/pull-down resistors
`Also packaged in plastic Fine-Pitch Ball Grid Array(FBGA) (Preliminary)

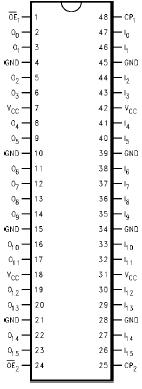

Pinout




Specifications

Symbol	Parameter		Value	Conditions	Units
VCC	Supply Voltage		−0.5 to +7.0		V
VI	DC Input Voltage	OE	−0.5 to +7.0		V
		I0 - I15	−0.5 to VCC + 0.5
VO	DC Output Voltage		−0.5 to +7.0 −0.5 to VCC + 0.5	3-STATE Output in HIGH or LOW State (Note 4)	V
IIK	DC Input Diode Current		−50	VI < GND	mA
IOK	DC Output Diode Current		−50 +50	VO < GND VO > VCC	mA
IO	DC Output Source/Sink Current		±50		mA
ICC	DC Supply Current per Supply Pin		±100		mA
IGND	DC Ground Current per Ground Pin		±100		mA
TSTG	Storage Temperature		−65 to +150		mA

Description

The 74LCXH162374 contains sixteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 16-bit operation.

The 74LCXH162374 is designed for low voltage (2.5V or3.3V) VCC applications. The 74LCXH162374 data inputs include active bushold circuitry, eliminating the need for external pull-up resistors to hold unused or floating data inputs at a valid logic level. The 26Ω series resistor in the output helps reduce output overshoot and undershoot.

The 74LCXH162374 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
