74LCX646

Features: . 5V tolerant inputs and outputs. 2.3V - 3.6V VCC specifications provided. 7.0 ns tPD max (VCC= 3.3V), 10 A ICC m ax . Power down high impedance inputs and outputs. Supports live insertion/withdrawal (Note 1). ±24 mA output drive (VCC = 3.0V). Implements patented noise/EMI reduction cir...

product image

74LCX646 Picture
See larger image
SeekIC No. : 004251031 Detail

74LCX646: Features: . 5V tolerant inputs and outputs. 2.3V - 3.6V VCC specifications provided. 7.0 ns tPD max (VCC= 3.3V), 10 A ICC m ax . Power down high impedance inputs and outputs. Supports live insertio...

74LCX646 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LCX646
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

. 5V tolerant inputs and outputs
. 2.3V - 3.6V VCC specifications provided
. 7.0 ns tPD  max (V CC =  3.3V), 10   A I CC  m ax
. Power down high impedance inputs and outputs
. Supports live insertion/withdrawal (Note 1)
. ±24 mA output drive (VCC = 3.0V)
. Implements patented noise/EMI reduction circuitry
. Latch-up performance exceeds 500 mA
. ESD performance:
  Human body model > 2000V
  Machine model > 200V




Pinout

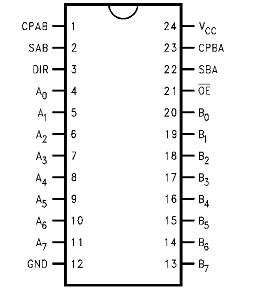

Connection Diagram


Specifications


Symbol

Parameter

Value

Conditions

Units

VCC

Supply Voltage

- 0.5 to +7.0



V

VI

DC Input Voltage

-0.5 to +7.0



V


VO

DC Output Voltage

-0.5 to +7.0
-0.5 to VCC + 0.5

Output in 3-STATE
Output in HIGH or LOW State (Note 4)

V

IIK

DC Input Diode Current


-50

VI <GND

mA

IOK

DC Output Diode Current

-50
+50

VO< GND

VO > VCC

mA

IO

DC Output Source/Sink Current


±50



mA

ICC

DC Supply Current per Supply Pin

±100



mA

IGND

DC Ground Current per Ground Pin

±100



mA

TSTG

Storage Temperature

-65 to +150




°C




Description

The 74LCX646 consists of registered bus transceiver circuits,D-type flip-flops, and control circuitry providing multiplexed transmission of data directly from the input bus or from the internal storage registers. Data of the 74LCX646 on the A or B bus will beloaded into the respective registers on the LOW-to-HIGH transition of the appropriate pin (CPAB or CPBA) (see Functional Description).

The 74LCX646 is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment.

The 74LCX646 is fabricated with an advanced CMOS tech- nology to achieve high speed operation while maintaining CMOS low power dissipation.
