74LCX16543

Features:

 5V tolerant inputs and outputs
2.3V3.6V V_CC specifications provided
5.2 ns t_PD max (V_CC = 3.3V), 20 mA I_CC max
Power down high impedance inputs and outputs
Supports live insertion/withdrawal (Note 1)
±24 mA Output Drive (V_CC = 3.0V)
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance:
   Human Body Model > 2000V
   Machine Model > 200V


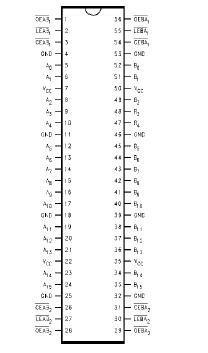

Pinout




Specifications

Symbol	Parameter	Value	Conditions	Units
VCC	Supply Voltage	−0.5 to +7.0		V
VI	DC Input Voltage	−0.5 to +7.0		V
VO	DC Output Voltage	−0.5 to +7.0 −0.5 to VCC +0.5	Output in 3-STATE Output in HIGH or LOW State (Note3)	V
IIK	DC Input Diode Current	−50	VI < GND	mA
IOK	DC Output Diode Current	−50 +50	VO < GND VO > VCC	mA
IO	DC Output Source/Sink Current	±50		mA
ICC	DC Supply Current per Supply Pin	±100		mA
IGND	DC Ground Current per Ground Pin	±100		mA
TSTG	Storage Temperature	−65 to +150		°C

Description

   The 74LCX16543 contains sixteen non-inverting transceivers containing two sets of D-type registers for temporary storage of data flowing in either direction. Each byte has separate control inputs which can be shorted together for full 16-bit operation. Separate Latch Enable and Output Enable inputs are provided for each register to permit independent input and output control in either direction of data flow.

   The 74LCX16543 is designed for low voltage (2.5V or 3.3V) V_CC applications with capability of interfacing to a 5V signal environment.

   The 74LCX16543 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
