74LCX16245

Features: 5V tolerant inputs and outputs2.3V3.6V VCC specifications provided 4.5 ns tPD max (VCC 3.3V), 20 A ICC max Power down high impedance inputs and outputs Supports live insertion/withdrawal (Note 1) ±24 mA output drive (VCC 3.0V) Uses patented noise/EMI reduction circuitry Latch-up performa...

product image

74LCX16245 Picture
See larger image
SeekIC No. : 004250992 Detail

74LCX16245: Features: 5V tolerant inputs and outputs2.3V3.6V VCC specifications provided 4.5 ns tPD max (VCC 3.3V), 20 A ICC max Power down high impedance inputs and outputs Supports live insertion/withdrawal (...

74LCX16245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LCX16245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5V tolerant inputs and outputs
2.3V3.6V VCC specifications provided
4.5 ns tPD max (VCC 3.3V), 20 A ICC max
Power down high impedance inputs and outputs
Supports live insertion/withdrawal (Note 1)
±24 mA output drive (VCC 3.0V)
Uses patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance:
Human body model ! 2000V
Machine model ! 200V
Also packaged in plastic Fine-Pitch Ball Grid Array(FBGA)




Pinout

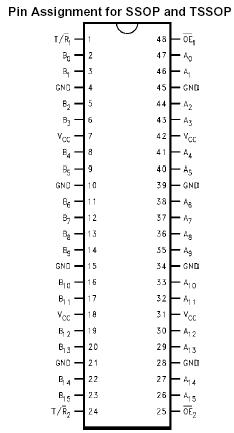

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
74LCX16245MEA Full Production Green $1.38 SSOP 48 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX16245
74LCX16245MEAX Full Production Green $1.38 SSOP 48 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX16245
74LCX16245MTD Full Production RoHS Compliant $0.55 TSSOP 48 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX16245
74LCX16245MTDX Full Production RoHS Compliant $0.55 TSSOP 48 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX16245
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product 74LCX16245 is available. Click here for more information .


Symbol Parameter Value Conditions Units
VCC Supply Voltage −0.5 to +7.0 V
VI DC Input Voltage
−0.5 to +7.0 V
VO DC Output Voltage −0.5 to +7.0
−0.5 to VCC +0.5 		Output in3-STATE
Output in HIGH or LOW State (Note5)		 V
IIK DC Input Diode Current
−50 VI < GND mA
IOK DC Output Diode Current
−50
+50 		VO < GND
VO > VCC		 mA
IO DC Output Source/Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±100 mA
IGND DC Ground Current per Ground Pin ±100 mA
TSTG Storage Temperature −65 to +150 °C





Description

The 74LCX16245 contains sixteen non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The device is byte controlled. Each byte has separate control inputs which could be shorted together for full 16-bit operation. The T/R# inputs of the 74LCX16245 determine the direction of data flow through the device. The OE# inputs disable both the A and B ports by placing them in a high impedance state.

The 74LCX16245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
