74LCX16240A

Features: · 5VTOLERANT INPUTS AND OUTPUTS· HIGHSPEED: tPD =4.9 ns (MAX.) at VCC = 3.0V· POWER-DOWNPROTECTIONON INPUTS ANDOUTPUTS· SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 24mA (MIN)· PCI BUSLEVELSGUARANTEED AT 24mA·BALANCEDPROPAGATIONDELAYS: tPLH= tPHL· OPERATINGVOLTAGERANGE: VCC (OPR)= 2.7Vto ...

product image

74LCX16240A Picture
See larger image
SeekIC No. : 004250989 Detail

74LCX16240A: Features: · 5VTOLERANT INPUTS AND OUTPUTS· HIGHSPEED: tPD =4.9 ns (MAX.) at VCC = 3.0V· POWER-DOWNPROTECTIONON INPUTS ANDOUTPUTS· SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 24mA (MIN)· PCI BUSLEVEL...

74LCX16240A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LCX16240A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 5VTOLERANT INPUTS AND OUTPUTS
· HIGHSPEED:
    tPD =4.9 ns (MAX.) at VCC = 3.0V
· POWER-DOWNPROTECTIONON INPUTS ANDOUTPUTS
· SYMMETRICAL OUTPUT IMPEDANCE:
   |IOH| = IOL = 24mA (MIN)
· PCI BUSLEVELSGUARANTEED AT 24mA
· BALANCEDPROPAGATIONDELAYS:
    tPLH = tPHL
· OPERATINGVOLTAGERANGE:
    VCC (OPR)= 2.7Vto 3.6V (1.5VData Retention)
· PINANDFUNCTION COMPATIBLEWITH 74 SERIES16240
· LATCH-UPPERFORMANCE EXCEEDS500mA
· ESDPERFORMANCE:
    HBM>2000V;MM> 200V


Pinout

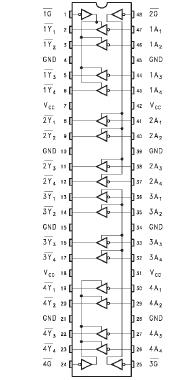

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VCC Supply Voltage
-0.5 to +7.0
V
VI DC Input Voltage
-0.5to + 7.0
V
VO DC Output Voltage (OFF state) -0.5to + 7.0
V
VO DC Output Voltage (High or Low State) (note1)
-0.5 toVCC +0.5
V
IIK DC Input Diode Current
-50
mA
IOK DC Output Diode Current(note2)
±50
mA
IO DC Output Source/Sink Current
±50
mA
ICC or IGND DC VCC or Ground Current Per Supply Pin
±100
mA
Tstg Storage Temperature
-65 to +150
TL Lead Temperature (10 sec)
300

AbsoluteMaximumRatingsarethose values beyond whichdamage to the device may occur. Functional operation under these condition isnot implied.
1) IO absolute maximum ratingmust be observed
2)VO <GND, VO >VCC


Description

The 74LCX16240A is a low voltage CMOS 16-BIT BUS BUFFER fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and high speed 3.3V applications; it can be interfaced to 5V signal environment for both inputs and outputs.

Any nG output control governs four BUS BUFFERS. Output Enable input (nG) of the 74LCX16240A tied together gives full 16-bit operation.

When nG is LOW, the outputs are on. When nG is HIGH, the output are in high impedance state.This device is designed to be used with 3 state memory address drivers, etc.

It has better speed performance at 3.3V than 5V LSTTL family combined with the true CMOS low power consumption.

All inputs and outputs of the 74LCX16240A are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
