Product Details

Description



Features:

5V tolerant inputs
2.3V to 3.6V VCC specifications provided
6.0 ns tPD max (VCC = 3.3V), 10 µA ICC max
Power down high impedance inputs and outputs
±24 mA output drive (VCC = 3.0V)
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance:
Human body model > 2000V
Machine model > 200V
Leadless DQFN package




Pinout

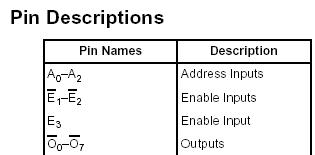

Connection Diagram Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
74LCX138BQX Full Production Green $0.345 DQFN 16 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX138
74LCX138M Full Production RoHS Compliant $0.172 SOIC 16 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX138
74LCX138MTC Full Production RoHS Compliant $0.172 TSSOP 16 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX138
74LCX138MTCX Full Production RoHS Compliant $0.172 TSSOP 16 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX138
74LCX138MX Full Production RoHS Compliant $0.172 SOIC 16 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX138
74LCX138SJ Full Production RoHS Compliant $0.277 SOP 16 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX138
74LCX138SJX Full Production RoHS Compliant $0.277 SOP 16 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: LCX138
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product 74LCX138 is available. Click here for more information .


Symbol Parameter Value Conditions Units
VCC Supply Voltage −0.5 to +7.0 V
VI DC Input Voltage −0.5 to +7.0 V
VO DC Output Voltage −0.5 to VCC + 0.5 Output in HIGH or LOW State (Note 4) V
IIK DC Input Diode Current −50 VI < GND mA
IOK DC Output Diode Current −50
+50 		VO < GND
VO > VCC		 mA
IO DC Output Source/Sink Current ±50 mA
ICC DC Supply Current per Supply Pin ±100 mA
IGND DC Ground Current per Ground Pin ±100 mA
TSTG Storage Temperature −65 to +150 °C





Description

The 74LCX138 is a high-speed 1-of-8 decoder/demultiplexer. This device is ideally suited for high-speed memory chip select address decoding. The multiple input enables allow parallel expansion to a 1-of-24 decoder using just three 74LCX138 devices or a 1-of-32 decoder using four 74LCX138 devices and one inverter.

The 74LCX138 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
