74H1G66

Features: HIGHSPEED: tPD = 4 ns (TYP.) atVCC =5VLOWPOWERDISSIPATION: ICC =1 mA (MAX.) at TA =25 oCHIGHNOISEIMMUNITY: VNIH=VNIL =28%VCC (MIN.)LOW ON RESISTANCE RON =50W (TYP.)AT VCC=9V II/O=100mASINEWAVE DISTORTION 0.042%(TYP.) AT VCC=4Vf=1KHzWIDE OPERATINGVOLTAGERANGE: VCC (OPR)= 2V to 12VPinoutS...

product image

74H1G66 Picture
See larger image
SeekIC No. : 004250658 Detail

74H1G66: Features: HIGHSPEED: tPD = 4 ns (TYP.) atVCC =5VLOWPOWERDISSIPATION: ICC =1 mA (MAX.) at TA =25 oCHIGHNOISEIMMUNITY: VNIH=VNIL =28%VCC (MIN.)LOW ON RESISTANCE RON =50W (TYP.)AT VCC=9V II/O=100mASIN...

74H1G66 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74H1G66
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 HIGHSPEED: tPD = 4 ns (TYP.) atVCC =5V
 LOWPOWERDISSIPATION: ICC =1 mA (MAX.) at TA =25 oC
 HIGHNOISEIMMUNITY: VNIH=VNIL =28%VCC (MIN.)
 LOW"ON" RESISTANCE RON =50W (TYP.)AT VCC=9V II/O=100mA
 SINEWAVE DISTORTION 0.042%(TYP.) AT VCC=4Vf=1KHz
 WIDE OPERATINGVOLTAGERANGE: VCC (OPR)= 2V to 12V



Pinout

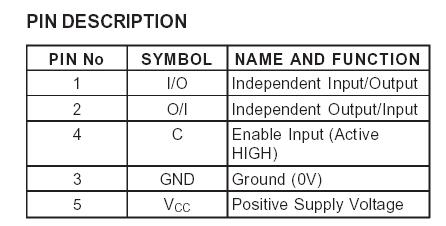

Connection Diagram Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +13 V
VI DC Input Voltage -0.5 to VCC +0.5 V
VI/O DC Input/Output Voltage -0.5 to VCC +0.5 V
IIK Control Input DC Diode Current ± 20 mA
IIOK Input/Output DC Diode Current ± 20 mA
IO DC Output Source Sink Current Per Output Pin ± 25 mA
ICC or IGND DC VCC or Ground Current ± 50 mA
PD Power Dissipation 500 (*) mW
Tstg Storage Temperature -65 to+150 oC
TL Lead Temperature (10 sec) 300 oC



Description

   The 74H1G66 is an high-speed CMOS SINGLE BILATERAL SWITCH fabricated in silicon gate C2MOS technology. It has high speed performance combined with true CMOS low power consumption.

   The C input of the 74H1G66 is provided to control the switch; the switch is ON when the C input is held high and off when C is held low.
