74FR9240

Features: 3-STATE outputs drive bus lines or buffer memory address registers Outputs sink 64 mA and source 15 mA Guaranteed multiple output switching, 250 pF delay and pin-to-pin skew Guaranteed 4000V minimum ESD protection 9-bit architecture for systems carrying parityPinoutSpecificationsStorage...

product image

74FR9240 Picture
See larger image
SeekIC No. : 004250627 Detail

74FR9240: Features: 3-STATE outputs drive bus lines or buffer memory address registers Outputs sink 64 mA and source 15 mA Guaranteed multiple output switching, 250 pF delay and pin-to-pin skew Guaranteed 40...

74FR9240 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74FR9240
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

3-STATE outputs drive bus lines or buffer memory address registers
Outputs sink 64 mA and source 15 mA
Guaranteed multiple output switching, 250 pF delay and pin-to-pin skew
Guaranteed 4000V minimum ESD protection
9-bit architecture for systems carrying parity


Pinout

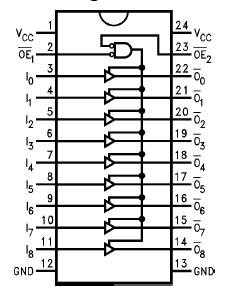

Connection Diagram


Specifications

Storage Temperature ............................................ -65°C to +150°C
Ambient Temperature under Bias .......................... -55°C to +125°C
Junction Temperature under Bias .......................... -55°C to +150°C
VCC Pin Potential to Ground Pin ............................ -0.5V to +7.0V
Input Voltage (Note 2) .......................................... -0.5V to +7.0V
Input Current (Note 2) .......................................... -30 mA to +5.0 mA
Voltage Applied to Output
  in HIGH State (with VCC = 0V)
  Standard Output ................................................. -0.5V to VCC
  3-STATE Output ................................................... -0.5V to +5.5V
Current Applied to Output
  in LOW State (Max) ............................................. Twice the Rated IOL (mA)
ESD Last Passing Voltage (Min) ............................ 4000V


Description

The 74FR9240 is an inverting 9-bit buffer and line driver designed to be employed as memory and address driver, clock driver and bus oriented transmitter or receiver.
