74FR16540

Storage Temperature                    -65 to +150
Ambient Temperature under Bias  -55 to +125
Junction Temperature under Bias  -55 to +150
V_CC Pin Potential to Ground Pin      -0.5V to +7.0V
Input Voltage (Note 2)                    -0.5V to +7.0V
Input Current (Note 2)              -30 mA to +5.0 mA
Voltage Applied to Output
in HIGH State (with V_CC = 0V)
Standard Output                                 -0.5V to V_CC
3-STATE Output                               -0.5V to +5.5V
Current Applied to Output
in LOW State (Max)         Twice the Rated IOL (mA)
ESD Last Passing Voltage (Min)                    4000V

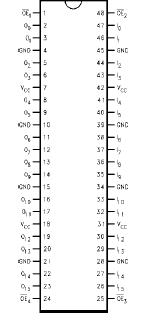

The 74FR16540 contains sixteen inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/receiver. The device is byte controlled. Each byte hasseparate
3-STATE control inputs of the 74FR16540 which can be shortedtogether for full 16-bit operation.
