74FR16245

Features: *Non-inverting buffers*Bidirectional data paths*A and B output sink capability of 64 mA, source capability of 15 mA*Separate control pins for each byte*Guaranteed pin-to-pin skew*Low 3-STATE IIL*16-Bit version of the 74F245 or 74F645PinoutSpecificationsStorage Temperature...................

product image

74FR16245 Picture
See larger image
SeekIC No. : 004250612 Detail

74FR16245: Features: *Non-inverting buffers*Bidirectional data paths*A and B output sink capability of 64 mA, source capability of 15 mA*Separate control pins for each byte*Guaranteed pin-to-pin skew*Low 3-STA...

74FR16245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74FR16245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Non-inverting buffers
*Bidirectional data paths
*A and B output sink capability of 64 mA, source
  capability of 15 mA
*Separate control pins for each byte
*Guaranteed pin-to-pin skew
*Low 3-STATE IIL
*16-Bit version of the 74F245 or 74F645


Pinout

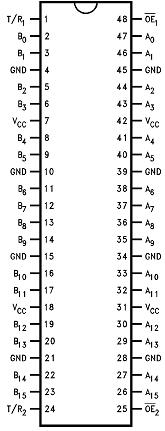

Connection Diagram


Specifications

Storage Temperature.........................−65°C to +150°C
Ambient Temperature under Bias ......−55°C to +125°C
Junction Temperature under Bias.......−55°C to +150°C
VCC Pin Potential to Ground Pin ...............−0.5V to +7.0V
Input Voltage (Note 2) .............................−0.5V to +7.0V
Input Current (Note 2) .......................−30 mA to +5.0 mA
Voltage Applied to Output
   in HIGH State (with VCC = 0V)
   Standard Output ........................................−0.5V to VCC
   3-STATE Output ......................................−0.5V to +5.5V
Current Applied to Output
   in LOW State (Max) .................Twice the Rated IOL (mA)
ESD Last Passing Voltage (Min) ...............................4000V


Description

    The 74FR16245 contains sixteen non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus- oriented applications. Current sinking capability is 64 mA on both the A and B Ports. The 74FR16245 is byte controlled. Each byte has separate control inputs which can be shorted together for full 16-bit operation. The transmit/ inputs determine the direction of data flow receive (T/Rn) inputs through the transceiver. The output enable (OEn) disable both A and B Ports by placing them in an high impedance state.
