74F374

Features: *Edge-triggered D-type inputs* Buffered positive edge-triggered clock* TRI-STATE outputs for bus-oriented applications* Guaranteed 4000V minimum ESD protectionPinoutSpecificationsStorage Temperature ............................................................................................

product image

74F374 Picture
See larger image
SeekIC No. : 004249756 Detail

74F374: Features: *Edge-triggered D-type inputs* Buffered positive edge-triggered clock* TRI-STATE outputs for bus-oriented applications* Guaranteed 4000V minimum ESD protectionPinoutSpecificationsStorage T...

74F374 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74F374
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Edge-triggered D-type inputs
* Buffered positive edge-triggered clock
* TRI-STATE outputs for bus-oriented applications
* Guaranteed 4000V minimum ESD protection

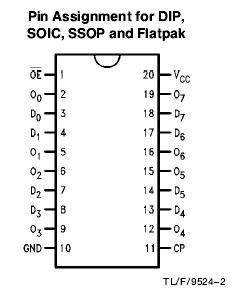

Pinout

Connection Diagram


Specifications

Storage Temperature .........................................................................................-65 to +150
Ambient Temperature under Bias .......................................................................-55 to +125
Junction Temperature under Bias .......................................................................-55 to +175
   Plastic ..............................................................................................................-55 to +150
VCC Pin Potential to
   Ground Pin ........................................................................................................-0.5V to +7.0V
Input Voltage (Note 2) .........................................................................................-0.5V to +7.0V
Input Current (Note 2) ...................................................................................-30 mA to +5.0 mA
Voltage Applied to Output
   in HIGH State (with VCC e 0V)
   Standard Output ..................................................................................................-0.5V to VCC
   TRI-STATE® Output ...........................................................................................-0.5V to +5.5V
Current Applied to Output
   in LOW State (Max) ..............................................................................twice the rated IOL (mA)
ESD Last Passing Voltage (Min) ...........................................................................................4000V


Description

The 74F374 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and TRI-STATE outputs for bus-oriented applications. A buffered Clock (CP) and Output Enable (OE) are common to all flip-flops.
