74F245

Features: *Non-inverting buffers* Bidirectional data path* A outputs sink 24 mA (20 mA Mil)* B outputs sink 64 mA (48 mA Mil)* Guaranteed 4000V minimum ESD protectionPinoutSpecificationsStorage Temperature .........................................................................................-65...

product image

74F245 Picture
See larger image
SeekIC No. : 004249715 Detail

74F245: Features: *Non-inverting buffers* Bidirectional data path* A outputs sink 24 mA (20 mA Mil)* B outputs sink 64 mA (48 mA Mil)* Guaranteed 4000V minimum ESD protectionPinoutSpecificationsStorage Temp...

74F245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74F245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Non-inverting buffers
* Bidirectional data path
* A outputs sink 24 mA (20 mA Mil)
* B outputs sink 64 mA (48 mA Mil)
* Guaranteed 4000V minimum ESD protection


Pinout

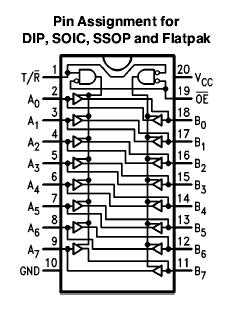

Connection Diagram


Specifications

Storage Temperature .........................................................................................-65 to +150
Ambient Temperature under Bias .......................................................................-55 to +125
Junction Temperature under Bias .......................................................................-55 to +175
   Plastic ..............................................................................................................-55 to +150
VCC Pin Potential to
   Ground Pin ........................................................................................................-0.5V to +7.0V
Input Voltage (Note 2) .........................................................................................-0.5V to +7.0V
Input Current (Note 2) ...................................................................................-30 mA to +5.0 mA
Voltage Applied to Output
   in HIGH State (with VCC = 0V)
   Standard Output ..................................................................................................-0.5V to VCC
   TRI-STATE® Output ...........................................................................................-0.5V to +5.5V
Current Applied to Output
   in LOW State (Max) ..............................................................................twice the rated IOL (mA)
ESD Last Passing Voltage (Min) ...........................................................................................4000V


Description

The 74F245 contains eight non-inverting bidirectional buffers with TRI-STATE outputs and is intended for bus-oriented applications. Current sinking capability is 24 mA (20 mA Mil) at the A ports and 64 mA (48 mA Mil) at the B ports. The Transmit/Receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active HIGH) enables data from A ports to B ports; Receive (active LOW) enables data of the 74F245 from B ports to A ports. The Output Enable input, when HIGH, disables both A and B ports by placing them in a High Z condition.
