Features:

* TRI-STATE. outputs drive bus lines or buffer memory
   address registers
* 12 mA source current
* 25X series resistors in outputs eliminate the need for
   external resistors.
* Designed to drive the capacitive inputs of MOS devices
* Guaranteed 4000V minimum ESD protection


Pinout

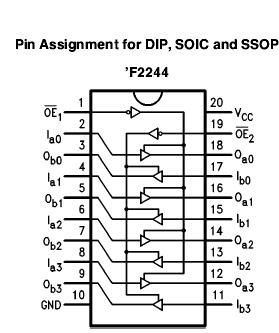

Connection Diagram


Specifications

Storage Temperature .........................................................................................-65 to +150
Ambient Temperature under Bias .......................................................................-55 to +125
Junction Temperature under Bias .......................................................................-55 to +175
   Plastic ..............................................................................................................-55 to +150
VCC Pin Potential to
   Ground Pin ........................................................................................................-0.5V to +7.0V
Input Voltage (Note 2) .........................................................................................-0.5V to +7.0V
Input Current (Note 2) ...................................................................................-30 mA to +5.0 mA
Voltage Applied to Output
   in HIGH State (with VCC = 0V)
   Standard Output ..................................................................................................-0.5V to VCC
   TRI-STATE® Output ...........................................................................................-0.5V to +5.5V
Current Applied to Output
   in LOW State (Max) ..............................................................................twice the rated IOL (mA)
ESD Last Passing Voltage (Min) ...........................................................................................4000V


Description

The 74F2244 is an octal buffer/line driver designed to drive the capacitive inputs of MOS memory drivers, address drivers, clock drivers and bus-oriented transmitters/receivers. The 25X series resistors in the outputs reduce ringing and eliminate the need for external resistors.
