74AVCM162835

Features: • Wide supply voltage range of 1.2 V to 3.6 V• Complies with JEDEC standard no. 8-1A/5/7.• CMOS low power consumption• Input/output tolerant up to 3.6 V• Low inductance multiple VCC and GND pins for minimum noise and ground bounce• Integrated 15 W term...

product image

74AVCM162835 Picture
SeekIC No. : 004249579 Detail

74AVCM162835: Features: • Wide supply voltage range of 1.2 V to 3.6 V• Complies with JEDEC standard no. 8-1A/5/7.• CMOS low power consumption• Input/output tolerant up to 3.6 V• Low ...

floor Price/Ceiling Price

Part Number:
74AVCM162835
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/10

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide supply voltage range of 1.2 V to 3.6 V
• Complies with JEDEC standard no. 8-1A/5/7.
• CMOS low power consumption
• Input/output tolerant up to 3.6 V
• Low inductance multiple VCC and GND pins for minimum noise and ground bounce
• Integrated 15 W termination resistors to minimize output overshoot and undershoot
• Full PC133 solution provided when used with PCK2510S and CBT16292



Pinout

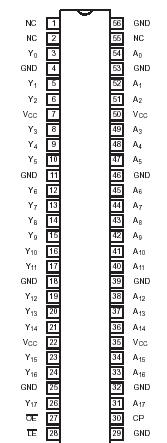

  Connection Diagram




Specifications

Symbol
Parameter
CONDITIONS
RATING
Unit
VCC
DC Supply Voltage
-0.5 to +4.6
V
IIK
DC input diode current
VI <0
50
mA
VI
DC input voltage
For all inputs1
-0.5 to +4.6
V
IOK
DC output diode current
VO >VCC or VO< 0
±50
mA
VO
DC output voltage; output 3-State
Note 1
0.5 to 4.6
V
VO
DC output voltage;
output HIGH or LOW state
Note 1
-0.5 to VCC + 0.5
V
IO
DC output source or sink current
VO = 0 to VCC
± 50
mA
ICC or IGND
DC VCC or Ground Currentper
± 100
mA
Tstg
Storage temperature range
-65 to +150
PTOT
Power dissipation per package
plastic thin-medium-shrink (TSSOP)
For temperature range: 40 to +125 °C
above +55 °C derate linearly with 8 mW/K
600
mW

1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.


Description

The 74AVCM162835 is a 18-bit universal bus driver. Data flow is controlled by output enable (OE), latch enable (LE) and clock inputs (CP).

The 74AVCM162835 is designed to have an extremely fast propagation delay and a minimum amount of power consumption.

To ensure the high-impedance state during power up or power down,OE should be tied to VCC through a pullup resistor (Live Insertion).
