Features:

• Wide supply voltage range of 1.2 V to 3.6 V
• Complies with JEDEC standard no. 8-1A/5/7.
• CMOS low power consumption
• Input/output tolerant up to 3.6 V
• Low inductance multiple VCC and GND pins for minimum noise and ground bounce
• Integrated 15 W termination resistors to minimize output overshoot and undershoot
• Full PC133 solution provided when used with PCK2510S and CBT16292




Pinout

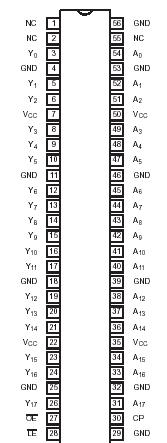

  Connection Diagram


Specifications

Symbol
Parameter
CONDITIONS
Value
Unit
VCC
DC Supply Voltage
-0.5 to +4.6
V
IIK
DC input diode current
VI <0
50
mA
VI
DC input voltage
For all inputs1
-0.5 to +4.6
V
IOK
DC output diode current
VO >VCC or VO< 0
±50
mA
VO
DC output voltage; output 3-State
Note 1
0.5 to 4.6
V
VO
DC output voltage;
output HIGH or LOW state
Note 1
-0.5 to VCC + 0.5
V
IO
DC output source or sink current
VO = 0 to VCC
± 50
mA
ICC or IGND
DC VCC or Ground Currentper
± 100
mA
Tstg
Storage temperature range
-65 to +150
PTOT
Power dissipation per package
plastic thin-medium-shrink (TSSOP)
For temperature range: 40 to +125 °C
above +55 °C derate linearly with 8 mW/K
600
mW



Description

The 74AVCM162834 is an 18-bit universal bus driver. Data flow is controlled by output enable (OE), latch enable (LE) and clock inputs (CP).

The 74AVCM162834 is designed to have an extremely fast propagation delay and a minimum amount of power consumption.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor (Live Insertion).
