Features:

Wide supply voltage range of 1.2 V to 3.6 V
Complies with JEDEC standard no. 8-1A/5/7.
CMOS low power consumption
Input/output tolerant up to 3.6 V
DCO (Dynamic Controlled Output) circuit dynamically changes output impedance, resulting in noise reduction without speed degradation
Low inductance multiple VCC  and GND pins for minimum noise and ground bounce
Power off disables 74AVC16834 outputs, permitting Live Insertion



Application

    Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.




Pinout

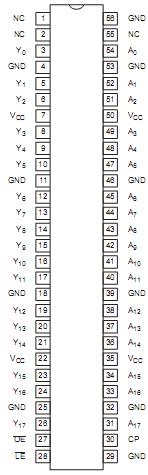

  Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   0.5 to +4.6 V
IIK DC input diode current VI < 0 -50 mA
VI DC input voltage For all inputs1 0.5 to 4.6 V
IOK DC output diode current VO >VCC or VO <0 ±50 mA
VO DC output voltage; output 3-State Note 1 0.5 to 4.6 V
VO DC output voltage;
output HIGH or LOW state
Note 1 0.5 to VCC +0.5 V
IO DC output source or sink current VO = 0 to VCC ±50 mA
IGND, ICC DC VCC or GND current   ±100 mA
Tstg Storage temperature range   65 to +150
PTOT Power dissipation per package
plastic thin-medium-shrink (TSSOP)
For temperature range: 40 to +125   above +55  derate linearly with 8 mW/K 600 mW



Description

      The 74AVC16834 is a 18-bit universal bus driver. Data flow is, latch enable(OE) and clock inputs controlled by output enable(LE) . This product is designed to have an extremely fast propagation delay and a minimum amount of power consumption (CP).

      The 74AVC16834 is designed to have an extremely fast propagation delay and a minimum amount of power consumption.

      To ensure the high-impedance state of the 74AVC16834 during power up or power down, (OE) should be tied to VCC  through a pullup resistor (Live Insertion).

       A Dynamic Controlled Output (DCO) circuitry of the 74AVC16834 is implemented to support termination line drive during transient. See the graphs on page 8 for typical curves.
