74AVC16374

Features: · Wide supply voltage range from 1.2 to 3.6 V· Complies with JEDEC standard no. 8-1A/5/7· CMOS low power consumption· Input/output tolerant up to 3.6 V· DCO (Dynamic Controlled Output) circuit dynamically changes output impedance, resulting in noise reduction without speed degradation· ...

product image

74AVC16374 Picture
See larger image
SeekIC No. : 004249562 Detail

74AVC16374: Features: · Wide supply voltage range from 1.2 to 3.6 V· Complies with JEDEC standard no. 8-1A/5/7· CMOS low power consumption· Input/output tolerant up to 3.6 V· DCO (Dynamic Controlled Output) cir...

74AVC16374 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74AVC16374
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Wide supply voltage range from 1.2 to 3.6 V
· Complies with JEDEC standard no. 8-1A/5/7
· CMOS low power consumption
· Input/output tolerant up to 3.6 V
· DCO (Dynamic Controlled Output) circuit dynamically changes  output
    impedance, resulting in noise reduction without speed degradation
· Low inductance multiple VCC and GND pins to minimize noise and ground bounce
· Supports Live Insertion.


Pinout

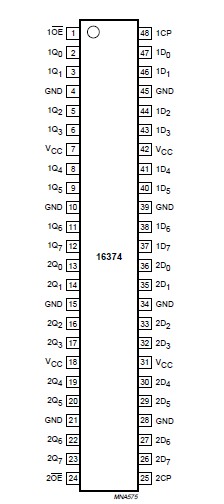

Connection Diagram


Description

The 74AVC16374 is a 16-bit edge triggered flip-flop featuring separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. The 74AVC16374 consist of 2 sections of eight edge triggered flip-flops. A clock input (CP) and an output enable (OE) are provided per 8-bit section.

The 74AVC16374 is designed to have an extremely fast propagation delay and a minimum amount of power consumption.

To ensure the high-impedance output state during power-up or power-down, nOE should be tied to VCC through a pull-up resistor (Live Insertion).

A Dynamic Controlled Output (DCO) circuitry of the 74AVC16374 is implemented to support termination line drive during transient (see Figs 1 and 2).
