74AVC16334A

Features: • Wide supply voltage range of 1.2 V to 3.6 V• Complies with JEDEC standard no. 8-1A/5/7.• CMOS low power consumption• Input/output tolerant up to 3.6 V• DCO (Dynamic Controlled Output) circuit dynamically changes output impedance, resulting in noise reduct...

product image

74AVC16334A Picture
SeekIC No. : 004249560 Detail

74AVC16334A: Features: • Wide supply voltage range of 1.2 V to 3.6 V• Complies with JEDEC standard no. 8-1A/5/7.• CMOS low power consumption• Input/output tolerant up to 3.6 V• DCO ...

floor Price/Ceiling Price

Part Number:
74AVC16334A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide supply voltage range of 1.2 V to 3.6 V
• Complies with JEDEC standard no. 8-1A/5/7.
• CMOS low power consumption
• Input/output tolerant up to 3.6 V
• DCO (Dynamic Controlled Output) circuit dynamically changes output
   impedance, resulting in noise reduction without speed degradation
• Low inductance multiple VCC and GND pins for minimum noise and ground bounce
• Power off disables 74AVC16334A outputs, permitting Live Insertion
• Integrated input diodes to minimize input overshoot and undershoot
• Full PC133 solution provided when used with PCK2509S or PCK2510S and CBT16292



Pinout

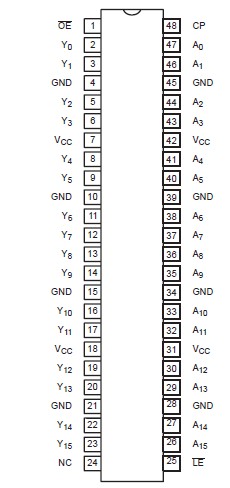

  Connection Diagram


Specifications

In accordance with the Absolute Maximum Rating System (IEC 134). Voltages are referenced to GND (ground = 0 V).
SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltagee 0.5 to +4.6 V
IIK DC input diode current VI< 0 50 mA
VI DC input voltage For all inputs1 0.5 to 4.6 V
IOK DC output diode current VO>VCC or VO< 0 􀀀±50 mA
VO DC output voltage; output 3-State Note 1 0.5 to 4.6 V
VO DC output voltage; output HIGH or LOW state Note 1 0.5 to VCC +0.5 V
IO DC output source or sink current VO = 0 to VCC 􀀀±50 mA
IGND, ICC DC VCC or GND current   ±100 mA
Tstg Storage temperature range 65 to +150 °C
PTOT Power dissipation per package
plastic thin-medium-shrink (TSSOP)
For temperature range: 40 to +125 °C
above +55°C derate linearly with 8 mW/K
600 mW



Description

The 74AVC16334A is a 16-bit universal bus driver. Data flow is controlled by output enable (OE), latch enable (LE) and clock inputs (CP).

This product is designed to have an extremely fast propagation delay and a minimum amount of power consumption.

To ensure the high-impedance state of the 74AVC16334A during power up or power down, OE should be tied to VCC through a pullup resistor (Live Insertion).

A Dynamic Controlled Output (DCO) circuitry of the 74AVC16334A is implemented to support termination line drive during transient. See the graphs on page 8 for typical curves.
