Features:

· Wide supply voltage range from 1.2 to 3.6 V
· Complies with JEDEC standard no. 8-1A/5/7
· CMOS low power consumption
· Input/output tolerant up to 3.6 V
· Dynamic Controlled Output (DCO) circuit dynamically
    changes output impedance, resulting in noise reduction
    without speed degradation
· Low inductance multiple power and ground pins for
    minimum noise and ground bounce
· Power off disables outputs, permitting live insertion.



Pinout

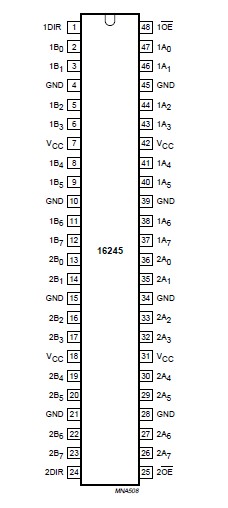

  Connection Diagram


Description

The 74AVC16245 is a 16-bit transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions.

The 74AVC16245 features two output enable inputs (nOE) for easy cascading and two send/receive inputs (nDIR) for direction control. Input nOE controls the outputs so that the buses are effectively isolated. This device can be used as two 8-bit transceivers or one 16-bit transceiver.

This product of the 74AVC16245 is designed to have an extremely fast propagation delay and a minimum amount of power consumption.

To ensure the high-impedance output state of the 74AVC16245 during power-up or power-down, input nOE should be tied to VCC through a pull-up resistor (live insertion).

A DCO circuitry of the 74AVC16245 is implemented to support termination line drive during transient (see Figs 1 and 2).
