Product Details

Description



Features:

` Wide supply voltage range from 0.8 to 2.7 V
` Performance optimised for VCC = 1.8 V
` High noise immunity
` Complies with JEDEC standard:
JESD76 (1.65 to 1.95 V)
` 8 mA output drive (VCC = 1.65 V)
` CMOS low power consumption
` Latch-up performance exceeds 250 mA
` ESD protection:
  00 V Human Body Model (A 114-A)
  Machine Model (A 115-A)
` 3.3 V tolerant inputs/outputs
` SC-88A and SC-74A package.


Pinout

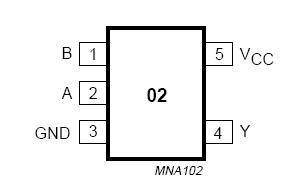

Connection Diagram


Description

The 74AUC1G02is a high-performance, low-power, low-voltage, Si-gate CMOS device.

Schmitt-trigger action at all inputs makes the circuit tolerant for slower input rise and fall time.

The 74AUC1G02 is fully specified for partial power-down applications using Ioff. The Ioff circuitry disables the output, preventing the damaging current backflow through the device when it is powered down.

The 74AUC1G02 provides the single 2-input NOR function.
