74ALVT16652

Features: • 16bit bus interface• 5V I/O Compatible• 3-State buffers• Output capability: +64mA/-32mA• TTL input and output switching levels• Input and output interface capability to systems at 5V supply• Bus-hold data inputs eliminate the need for external ...

product image

74ALVT16652 Picture
SeekIC No. : 004249502 Detail

74ALVT16652: Features: • 16bit bus interface• 5V I/O Compatible• 3-State buffers• Output capability: +64mA/-32mA• TTL input and output switching levels• Input and output inter...

floor Price/Ceiling Price

Part Number:
74ALVT16652
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 16bit bus interface
• 5V I/O Compatible
• 3-State buffers
• Output capability: +64mA/-32mA
• TTL input and output switching levels
• Input and output interface capability to systems at 5V supply
• Bus-hold data inputs eliminate the need for external pull-up
   resistors to hold unused inputs
• Live insertion/extraction permitted
• Power-up reset
• Power-up 3-State
• No bus current loading when output is tied to 5V bus
• Latch-up protection exceeds 500mA per JEDEC JC40.2 Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015
   and 200V per Machine Model



Pinout

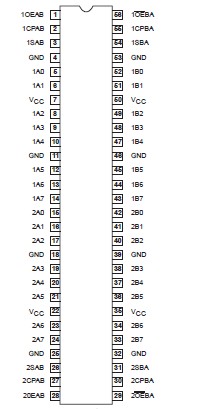

  Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage 0.5 to +4.6 V
IIK DC input diode current VI < 0 50 mA
VI DC input voltage3 0.5 to +7.0 V
IOK DC output diode current VO < 0 50 mA
VOUT DC output voltage3 Output in Off or High state 0.5 to +7.0 V
IOUT DC output current Output in Low state 128 mA
Output in High state 64
Tstg Storage temperature range 65 to +150 mA


NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output negative voltage ratings may be exceeded if the input and output clamp current ratings are observed.




Description

The 74ALVT16652 is a high-performance BiCMOS product designed for VCC operation at 2.5V or 3.3V with I/O mpatibility up to 5V. The device can be used as two 8-bit transceivers or one 16-bit transceiver.

Complimentary output-enable (OEAB and OEBA) inputs of the 74ALVT16652 are provided to control the transceiver functions. Select-control (SAB and SBA) inputs are provided to select whether real-time or stored data is transferred. A Low-input level selects real-time data, and a High input level selects stored data. The circuitry used for select control eliminates the typical decoding glitch that occurs in a multiplexer during the transition between stored and real-time data.

Data of the 74ALVT16652 on the A or B bus, or both, can be stored in the internal flip-flops by Low-to-High transitions at the appropriate clock (CPAB or CPBA) inputs regardless of the levels on the select-control or output-enable inputs. When SAB and SBA are in real-time transfer mode, it is possible to store data without using the internal D-type flip-flops by simultaneously enabling OEAB and OEBA. In this configuration, each output reinforces its input. Thus, when all other
data sources to the two sets of bus lines are at high impedance, each set of bus lines remains at its last level configuration.
