Product Details

Description

Features:

*16-bit universal bus interface
*5V I/O compatibile
*3-State buffers
*Output capability: +64mA/-32mA
*TTL input and output switching levels
*Input and output interface capability to systems at 5V supply
*Bus-hold data inputs eliminate the need for external pull-upresistors to hold unused inputs
*Live insertion/extraction permitted
*Power-up 3-State
*No bus current loading when output is tied to 5V bus
*Latch-up protection exceeds 500mA per JEDEC Std 17
*ESD protection exceeds 2000V per MIL STD 883 Method 3015and 200V per Machine Model

Pinout

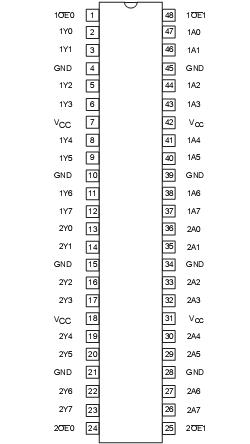

Connection Diagram

Specifications

Connection Diagram

Description

The 74ALVT16541 is a high-performance BiCMOS productdesigned for V_CC operation at 2.5V or 3.3V with I/O compatibility up to 5V.This device can be used as two octal buffers or one 16-bit buffer.The device is ideal for driving bus lines.
