74ALVT16344

Features: Multiple VCC and GND pins minimize switching noise5V I/O CompatibleLive insertion/extraction permitted3-State output buffersPower-up 3-StateOutput capability: +64mA/-32mALatch-up protection exceeds 500mA per Jedec JC40.2 Std 17ESD protection exceeds 2000 V per MIL STD 883 Method 3015and ...

product image

74ALVT16344 Picture
See larger image
SeekIC No. : 004249492 Detail

74ALVT16344: Features: Multiple VCC and GND pins minimize switching noise5V I/O CompatibleLive insertion/extraction permitted3-State output buffersPower-up 3-StateOutput capability: +64mA/-32mALatch-up protectio...

74ALVT16344 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVT16344
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Multiple VCC  and GND pins minimize switching noise
5V I/O Compatible
Live insertion/extraction permitted
3-State output buffers
Power-up 3-State
Output capability: +64mA/-32mA
Latch-up protection exceeds 500mA per Jedec JC40.2 Std 17
ESD protection exceeds 2000 V per MIL STD 883 Method 3015
and 200 V per Machine Model


Application

      Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.




Pinout

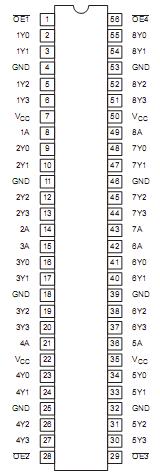

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   -0.5 to +4.6 V
IIK DC input diode current VI < 0 -50 mA
VI DC input voltage3   -0.5 to +7.0 V
IOK DC output diode current VO < 0 -50 mA
VOUT DC output voltage3 Output in Off or High state -0.5 to +7.0 V
IOUT DC output current Output in Low state 128 mA
Output in High state -64
Tstg Storage temperature range   -65 to +150 °C



Description

      The 74ALVT16344 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and  high output drive. It is designed for VCC operation at 2.5V or 3.3V with I/O compatibility to 5V.

      The 74ALVT16344 is a 1-to-4 address driver used in applications where four separate memory locations must be addressed by a single address.
