74ALVT16244

Features: 16-bit bus interface5V I/O compatibile3-State buffersOutput capability: +64mA/-32mATTL input and output switching levelsInput and output interface capability to systems at 5V supplyBus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputsLive insertion/...

product image

74ALVT16244 Picture
See larger image
SeekIC No. : 004249485 Detail

74ALVT16244: Features: 16-bit bus interface5V I/O compatibile3-State buffersOutput capability: +64mA/-32mATTL input and output switching levelsInput and output interface capability to systems at 5V supplyBus-hol...

74ALVT16244 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVT16244
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

16-bit bus interface
5V I/O compatibile
3-State buffers
Output capability: +64mA/-32mA
TTL input and output switching levels
Input and output interface capability to systems at 5V supply
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
Live insertion/extraction permitted
Power-up 3-State
No bus current loading when output is tied to 5V bus
Latch-up protection exceeds 500mA per JEDEC Std 17
ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model


Pinout

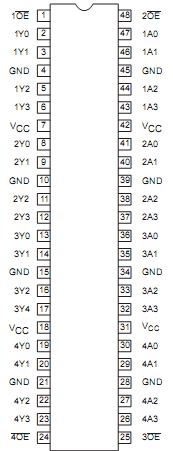

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   -0.5 to +4.6 V
IIK DC input diode current VI < 0 -50 mA
VI DC input voltage3   -0.5 to +7.0 V
IOK DC output diode current VO < 0 -50 mA
VOUT DC output voltage3 Output in Off or High state -0.5 to +7.0 V
IOUT DC output current Output in Low state 128 mA
Output in High state -64
Tstg Storage temperature range   -65 to +150 °C



Description

      The 74ALVT16244 is a high-performance BiCMOS product designed for VCC operation at 2.5V or 3.3V with I/O compatibility up to 5V.

      The 74ALVT16244 is a 16-bit buffer and line driver featuring non-inverting 3-State bus outputs. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.
