74ALVT162245

Features: • 16-bit bidirectional bus interface• 3-State buffers• 5V I/O compatibile• Output capability: +12mA/-12mA• TTL input and output switching levels• Input and output interface capability to systems at 5V supply• Bus-hold data inputs eliminate the ne...

product image

74ALVT162245 Picture
See larger image
SeekIC No. : 004249481 Detail

74ALVT162245: Features: • 16-bit bidirectional bus interface• 3-State buffers• 5V I/O compatibile• Output capability: +12mA/-12mA• TTL input and output switching levels• Input ...

74ALVT162245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVT162245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 16-bit bidirectional bus interface
• 3-State buffers
• 5V I/O compatibile
• Output capability: +12mA/-12mA
• TTL input and output switching levels
• Input and output interface capability to systems at 5V supply
• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
• Live insertion/extraction permitted
• Outputs include series resistance of 30W making external termination resistors unnecessary
• Power-up 3-State
• No bus current loading when output is tied to 5V bus
• Latch-up protection exceeds 500mA per JEDEC Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method and 200V per Machine Model

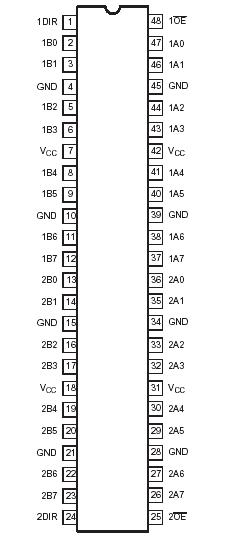

Pinout

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
RATING
UNIT
VCC
 DC supply voltage
0.5 to +4.6
V
IIK
 DC input diode current VI<0
-50
mA
VI
 DC input voltage3
-0.5to+7.0
V
IOK
 DC output diode current VO < 0
-50
mA
VOUT
 DC output voltage Output in Off or High state
-0.5to+7.0
V
IOUT
 DC output source or sink current Output in Low state
128
mA
Output in High state
-64
Tstg
 Storage temperature range
-65to+150



Description

The 74ALVT162245 is a high-performance BiCMOS product designed for VCC operation at 2.5V or 3.3V with I/O compatibility up to 5V.

The 74ALVT16241 is a 16-bit transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions. The control function implementation minimizes external timing requirements. The device features an Output Enable (nOE) input for easy cascading and a Direction (DIR) input for direction control.

The 74ALVT162245 is designed with 30W series resistance in both the High and Low states of the output. This design reduces line noise in applications such as memory address drivers, clock drivers, and bus transceivers/transmitters.
