Product Details

Description



Features:

• Diodes on inputs clamp overshoot
• ESD classification testing is done to JEDEC Standard JESD22. Protection exceeds 2000 V HBM per method A114.
• Latch-up testing is done to JEDEC Standard JESD78, which exceeds 100 mA.
• Bus hold on data inputs eliminates the need for external pullup/pulldown resistors
• Packaged in thin very small-outline package (TVSOP) - 0.4 mm pitch
• Optimized for use with PCK953 in SDRAM module applications
• Low noise, low skew

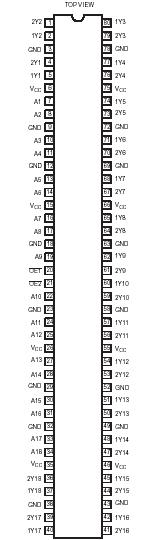

Pinout

  Connection Diagram


Specifications

Symbol
Parameter
CONDITIONS
RATING
Unit
VCC
Supply Voltage
-0.5 to +4.6
V
VI
input voltage
See Note 2
-0.5 to +4.6
V
VO
output voltage; output 3-State
See Notes 2 and 3
0.5 to VCC +0.5
V
IIK
input diode current
VI <0
50
mA
IOK
output diode current
VO< 0
±50
mA
IO
Continuous output current
± 50
mA
ICC or IGND
Continuous current through each VCC
or GND
± 100
mA
JA Package thermal impedance See Note 4 106 °C/W
Tstg
Storage temperature range
-65 to +150
1. Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
3. This value is limited to 4.6 V maximum.
4. The package thermal impedance is calculated in accordance with JESD 51.



Description

The 74ALVCHS16830 address driver is designed for 2.3 V to 3.6 V VCC operation.

Diodes to VCC of the 74ALVCHS16830 have been added on the inputs to clamp overshoot.

The bus hold feature retains the inputs' last state whenever the input bus goes to high impedance. This prevents floating inputs and eliminates the need for pull up or pull down resistors.

To ensure the high-impedance state of the 74ALVCHS16830 during power up or power down, the output-enable (OE) input should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The 74ALVCHS16830 is characterized for operation from 40 to +85 °C.
