74ALVCHS162830

Features: • Output ports have equivalent 26 W series resistors, so no external resistors are required• Diodes on inputs clamp overshoot• ESD classification testing is done to JEDEC Standard JESD22. Protection exceeds 2000 V HBM per method A114.• Latch-up testing is done to ...

product image

74ALVCHS162830 Picture
See larger image
SeekIC No. : 004249469 Detail

74ALVCHS162830: Features: • Output ports have equivalent 26 W series resistors, so no external resistors are required• Diodes on inputs clamp overshoot• ESD classification testing is done to JEDEC...

74ALVCHS162830 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVCHS162830
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Output ports have equivalent 26 W series resistors, so no external resistors are required
• Diodes on inputs clamp overshoot
• ESD classification testing is done to JEDEC Standard JESD22. Protection exceeds 2000 V HBM per method A114.
• Latch-up testing is done to JEDEC Standard JESD78, which exceeds 100 mA.
• Bus hold on data inputs eliminates the need for external pullup/pulldown resistors
• Packaged in thin very small-outline package (TVSOP) - 0.4 mm pitch
• Optimized for use with PCK953 in SDRAM module applications
• Balanced ±12 mA output drive
• Low noise, low skew


Pinout

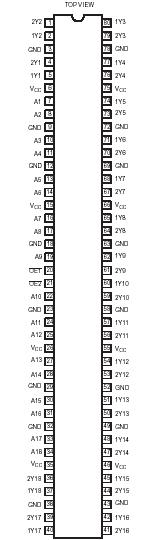

Connection Diagram


Specifications

Symbol
Parameter
CONDITIONS
RATING
Unit
VCC
Supply Voltage
-0.5 to +4.6
V
VI
input voltage
See Note 2
-0.5 to +4.6
V
VO
output voltage; output 3-State
 See Notes 2 and 3
0.5 to VCC +0.5
V
IIK
input diode current
VI <0
50
mA
IOK
output diode current
VO< 0
±50
mA
IO
Continuous output current
± 50
mA
ICC or IGND
Continuous current through each VCC
or GND
± 100
mA
JA Package thermal impedance See Note 4           106 °C/W
Tstg
Storage temperature range
-65 to +150
1. Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
3. This value is limited to 4.6 V maximum.
4. The package thermal impedance is calculated in accordance with JESD 51.


Description

The 74ALVCHS162830 address driver is designed for 2.3 V to 3.6 V VCC operation.

Diodes to VCC of the 74ALVCHS162830 have been added on the inputs to clamp overshoot. The bus hold feature retains the inputs' last state whenever the input bus goes to high impedance. This prevents floating inputs and eliminates the need for pull up or pull down resistors.

The outputs of the 74ALVCHS162830 which are designed to sink up to 12 mA, include equivalent 26 W series resistors to reduce overshoot and undershoot.

To ensure the high-impedance state during power up or power down, the output-enable (OE) input should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The 74ALVCHS162830 is characterized for operation from 40 to +85 °C.
